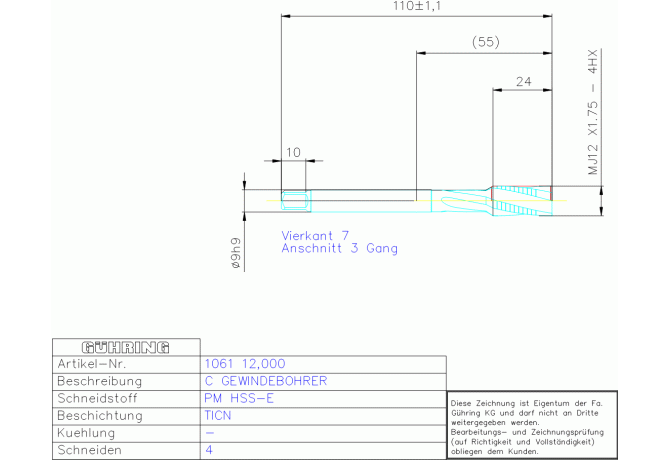

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1061 12.000

1061 12.000

1061 12.000 1061 12.000

1061 12.000

Gühring
Артикул: 9010610120000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
TI
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902105
DRVS Drive size
7 mm
FamilyProducts
PM HSSE C MA-GBO MJ 12X1,75 DIN376 TI-15
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
140.7 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9010610120000
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
60.9 mm
Name Identifying order number
1061 12.000
NOF Flute count
4
OAL Overall length
110 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 376
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.25 mm
TCTR Thread tolerance class
4HX
TD Thread diameter
12 mm
THFT Thread form type
MJ
THL Thread cutting part length
24 mm
THOD Thread designation
MJ12x1.75-4HX
TP Thread pitch
1.75 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.058 kg
