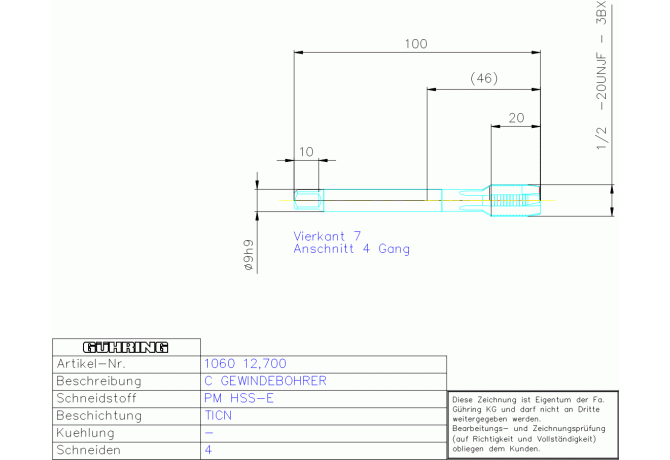

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1060 12.700

1060 12.700

1060 12.700 1060 12.700

1060 12.700

Gühring
Артикул: 9010600127000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
TN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00902105
DRVS Drive size
7 mm
FamilyProducts
PM HSSE C GBO 1/2 -20 UNJF DIN374 TN-B
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9010600127000
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
59.9 mm
Name Identifying order number
1060 12.700
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
11.4 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 374~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.08 mm
TCTR Thread tolerance class
3BX
TDFR Thread diameter nominal fraction
1/2 in
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNJF
THL Thread cutting part length
20 mm
THOD Thread designation
UNJF1/2-20-3BX
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.058 kg
