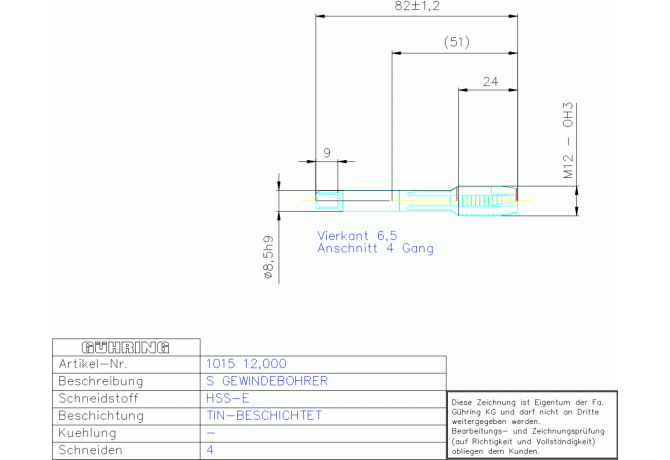

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1015 12.000

1015 12.000

1015 12.000 1015 12.000

1015 12.000

Gühring
Артикул: 9010150120000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00852105
DRVS Drive size
6.5 mm
FamilyProducts
HSS-E TIN-GBO M12 JIS B 4430 UN-B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9010150120000
Interface codes
J6 / J61
ISO
ZYL00852105h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0085
LOC-03 DCONMS Diameter
8.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL00852105h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00852105
LS Shank length
33.9 mm
Name Identifying order number
1015 12.000
NOF Flute count
4
OAL Overall length
82 mm
PLCD Gate diameter
10.11 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
JISB4430
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
7 mm
TCTR Thread tolerance class
OH3
TD Thread diameter
12 mm
THFT Thread form type
M
THL Thread cutting part length
24 mm
THOD Thread designation
M12x1.75-OH3
TP Thread pitch
1.75 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.042 kg
