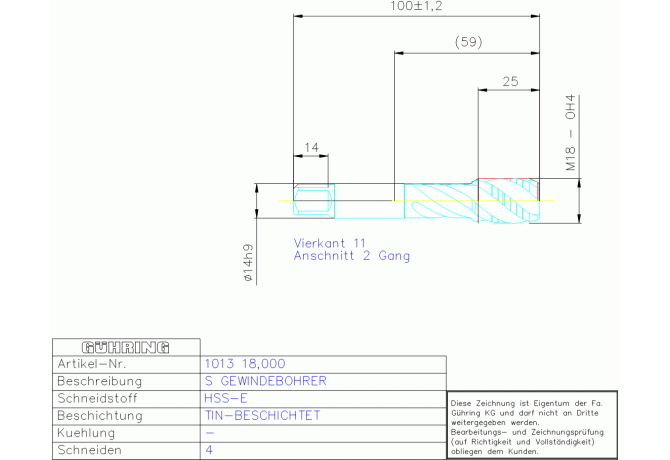

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1013 18.000

1013 18.000

1013 18.000 1013 18.000

1013 18.000

Gühring
Артикул: 9010130180000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01402105
DRVS Drive size
11 mm
FamilyProducts
HSS-E TIN-GBO M18 JIS B 4430 UN-40°
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
67.4 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9010130180000
Interface codes
J6 / J61
ISO
ZYL21G1400h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1400h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105
LS Shank length
44.9 mm
Name Identifying order number
1013 18.000
NOF Flute count
4
OAL Overall length
100 mm
PLCD Gate diameter
15.29 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
JIS B 4430
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5 mm
TCTR Thread tolerance class
OH4
TD Thread diameter
18 mm
THFT Thread form type
M
THL Thread cutting part length
25 mm
THOD Thread designation
M18x2.5-OH4
TP Thread pitch
2.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.108 kg
