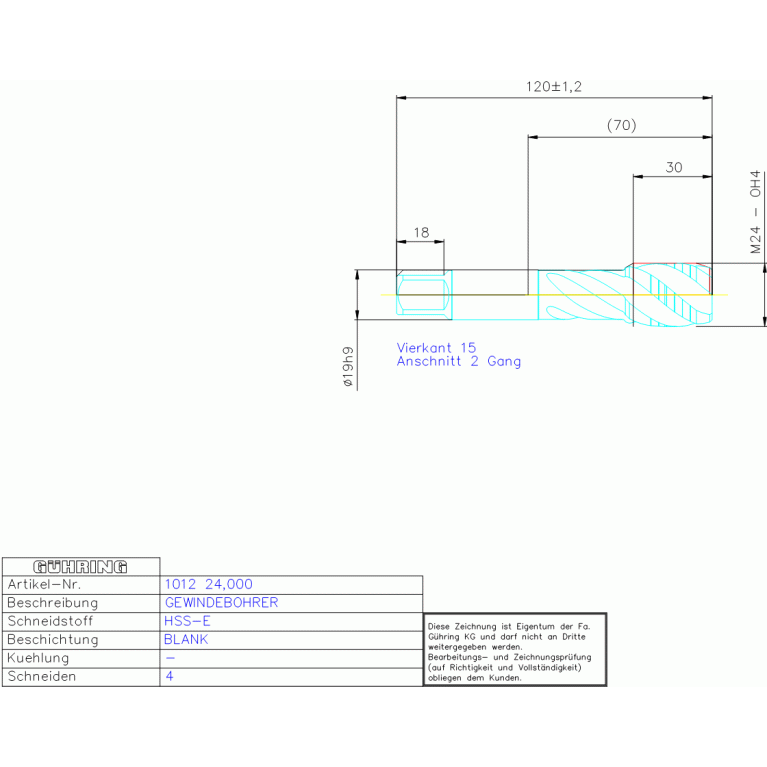

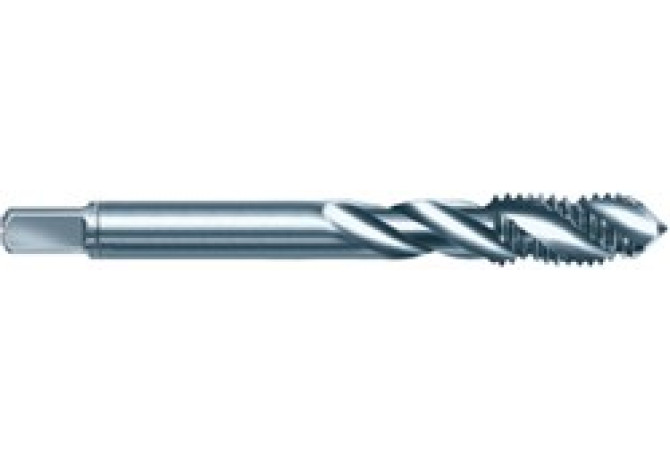

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1012 24.000

1012 24.000

1012 24.000 1012 24.000 1012 24.000 1012 24.000

1012 24.000

Gühring
Артикул: 1012 24.000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.052 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL01902105
DRVS Drive size
15 mm
FamilyProducts
HSS-E GBO M24 JIS B 4430 UN-40°
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
89.9 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0190
LOC-03 DCONMS Diameter
19 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01902105
LS Shank length
53.8 mm
Name Identifying order number
1012 24.000
NOF Flute count
4
OAL Overall length
120 mm
PLCD Gate diameter
20.75 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
JIS B 4430
TCL Tap chamfer length
6 mm
TCTR Thread tolerance class
OH4
TD Thread diameter
24 mm
THFT Thread form type
M
THL Thread cutting part length
30 mm
THOD Thread designation
M24x3-OH4
TP Thread pitch
3 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.236 kg
