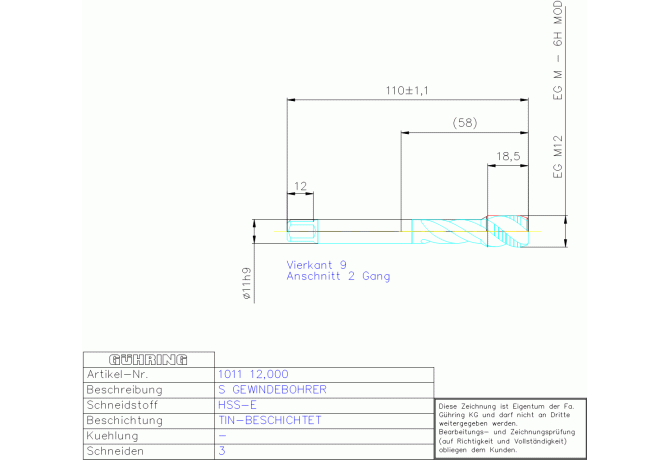

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1011 12.000

1011 12.000

1011 12.000 1011 12.000

1011 12.000

Gühring
Артикул: 9010110120000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01102105
DRVS Drive size
9 mm
FamilyProducts
HSS-E MA-GBO EG M12 DIN 40435 40° UN
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
53.7 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9010110120000
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
LS Shank length
56.9 mm
Name Identifying order number
1011 12.000
NOF Flute count
3
OAL Overall length
110 mm
PLCD Gate diameter
12.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN40435
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.5 mm
TCTR Thread tolerance class
6H MOD
TD Thread diameter
12 mm
THFT Thread form type
EG M
THL Thread cutting part length
18.5 mm
TP Thread pitch
1.75 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.075 kg
