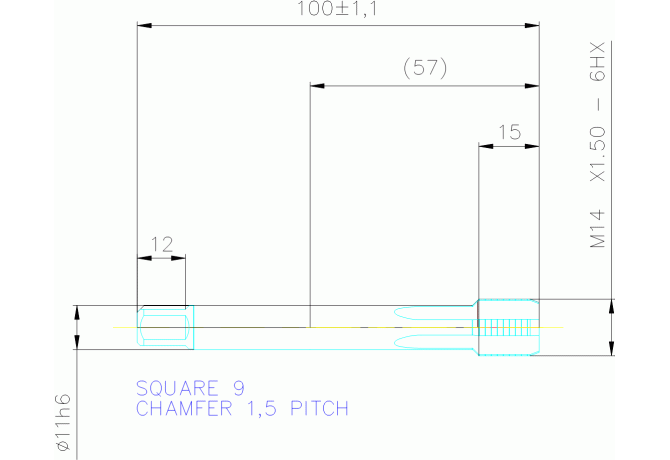

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1009 14.007

1009 14.007

Артикул: 9010090140070

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01102115

DRVS Drive size

9 mm

FamilyProducts

VHM MA-GBO IKZ M14 X1,50 DIN 374 H/E 6HX

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9010090140070

Interface codes

J6 / J61

ISO

ZYL21G1100h$06

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0110

LOC-03 DCONMS Diameter

11 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL21G1100h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01102115

LS Shank length

47 mm

Name Identifying order number

1009 14.007

NOF Flute count

OAL Overall length

100 mm

PLCD Gate diameter

12.38 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 374

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.25 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

14 mm

THFT Thread form type

THL Thread cutting part length

15 mm

THOD Thread designation

MF14x1.5-6HX

TP Thread pitch

1.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.128 kg
