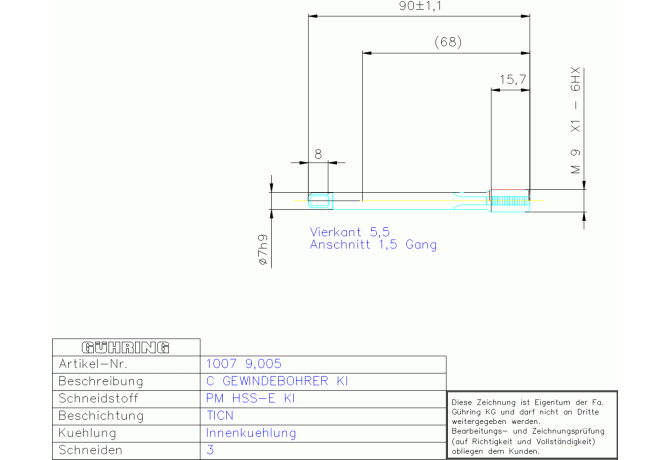

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1007 9.005

1007 9.005

Артикул: 9010070090050

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TICN

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.036 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00702115

DRVS Drive size

5.5 mm

FamilyProducts

PM HSSE C-GBO IKZ M 9 X1 DIN374 TYP H-E

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9010070090050

Interface codes

J6 / J61

ISO

ZYL21F7000h$09

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21F7000h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702115

LS Shank length

72.9 mm

Name Identifying order number

1007 9.005

NOF Flute count

OAL Overall length

90 mm

PLCD Gate diameter

7.92 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 374

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

1.5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

9 mm

THFT Thread form type

THL Thread cutting part length

16 mm

THOD Thread designation

MF9x1-6HX

TP Thread pitch

1 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.01 kg
