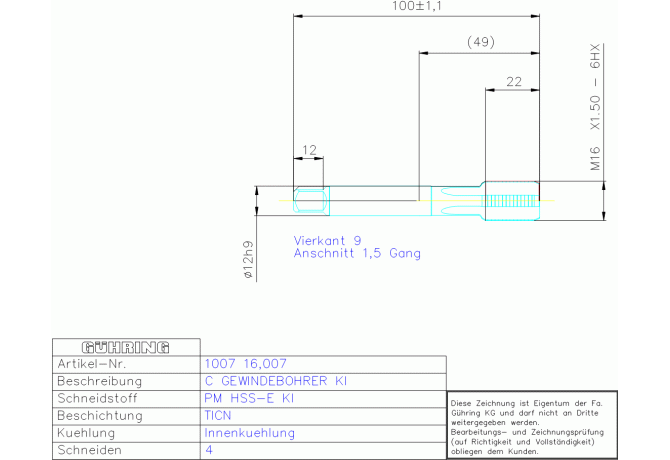

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1007 16.007

1007 16.007

Артикул: 9010070160070

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TICN

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01202115

DRVS Drive size

9 mm

FamilyProducts

PM HSSE C-GBO IKZ M16X1,5 DIN374 TYP H-E

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9010070160070

Interface codes

J6 / J61

ISO

ZYL21G1200h$09

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21G1200h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202115

LS Shank length

55.9 mm

Name Identifying order number

1007 16.007

NOF Flute count

OAL Overall length

100 mm

PLCD Gate diameter

14.38 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 374

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.25 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

16 mm

THFT Thread form type

THL Thread cutting part length

22 mm

THOD Thread designation

MF16x1.5-6HX

TP Thread pitch

1.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.079 kg
