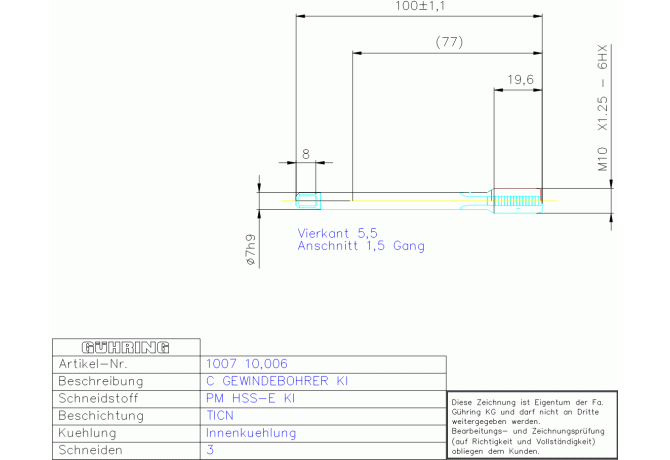

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1007 10.006

1007 10.006

1007 10.006 1007 10.006

1007 10.006

Gühring
Артикул: 9010070100060
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
HS
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00702115
DRVS Drive size
5.5 mm
FamilyProducts
PM HSSE C-GBO IKZ M10X1,25 DIN374 TYP HE
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9010070100060
Interface codes
J6 / J61
ISO
ZYL21F7000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F7000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702115
LS Shank length
78.4 mm
Name Identifying order number
1007 10.006
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
8.65 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1.875 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
10 mm
THFT Thread form type
MF
THL Thread cutting part length
20 mm
THOD Thread designation
MF10x1.25-6HX
TP Thread pitch
1.25 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.032 kg
