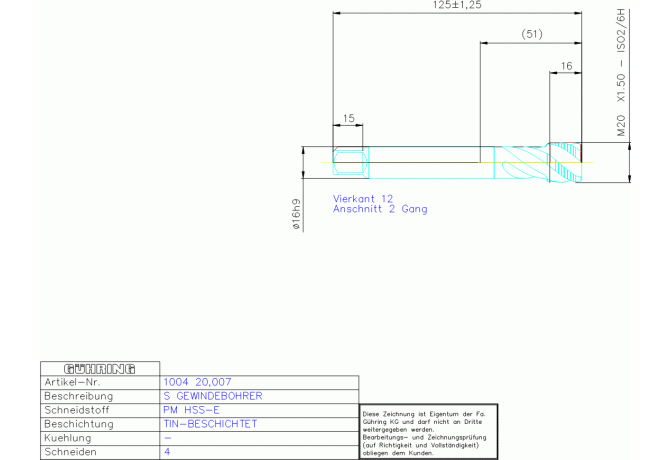

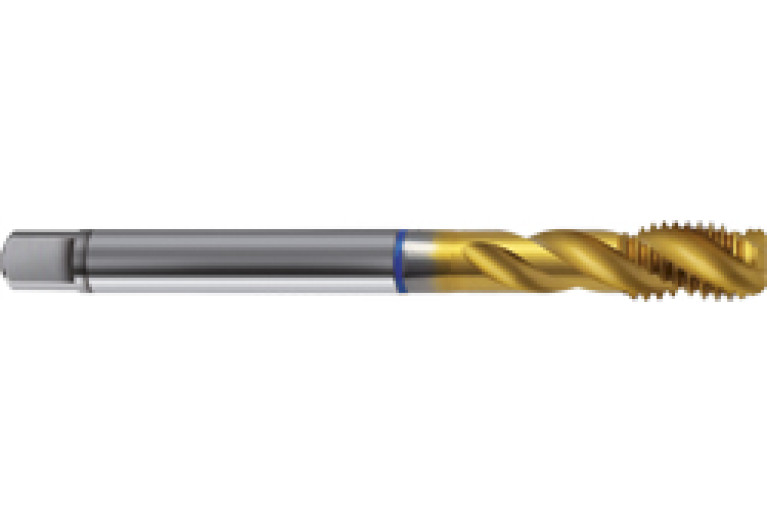

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1004 20.007

1004 20.007

1004 20.007 1004 20.007 1004 20.007

1004 20.007

Gühring
Артикул: 1004 20.007
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.043 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL01602105
DRVS Drive size
12 mm
FamilyProducts
PM HSS-E S-MA-GBO M20 X1,50 DIN374 VA-40
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
74.9 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602105
LS Shank length
80.9 mm
Name Identifying order number
1004 20.007
NOF Flute count
4
OAL Overall length
125 mm
PLCD Gate diameter
18.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 374
TCL Tap chamfer length
3 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
20 mm
THFT Thread form type
MF
THL Thread cutting part length
16 mm
THOD Thread designation
MF20x1.5-ISO2/6H
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.01 kg
