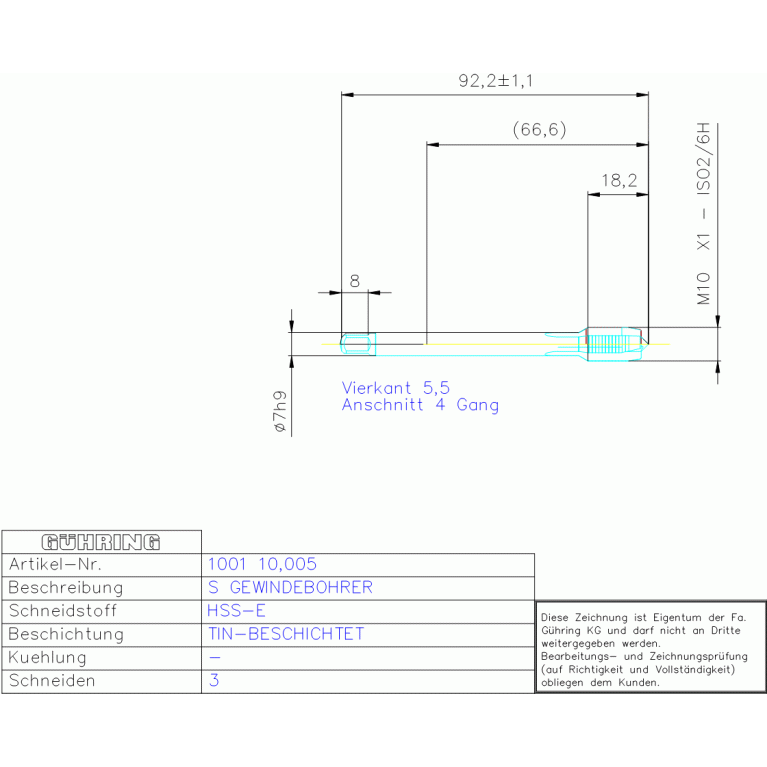

Главная Каталог продукции Toolunited 12 301-01 - Thread cutting tap with offset shank 1001 10.005

1001 10.005

1001 10.005 1001 10.005 1001 10.005 1001 10.005

1001 10.005

Gühring
Артикул: 1001 10.005
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00702105
DRVS Drive size
5.5 mm
FamilyProducts
HSS-E S - MA-GBO M10 X1 DIN 374 VA-B
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS Shank length
72.4 mm
Name Identifying order number
1001 10.005
NOF Flute count
3
OAL Overall length
90 mm
PLCD Gate diameter
8.8 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 374
TCL Tap chamfer length
4 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
10 mm
THFT Thread form type
MF
THL Thread cutting part length
16 mm
THOD Thread designation
MF10x1-ISO2/6H
TP Thread pitch
1 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.034 kg
