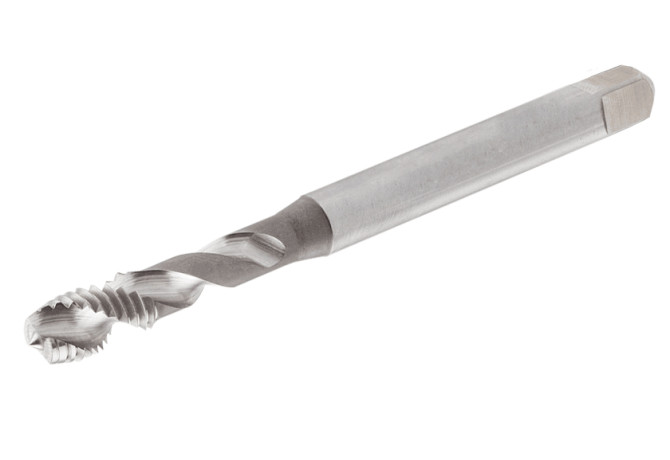

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank TPS UNC-5/16-18-M HEST

TPS UNC-5/16-18-M HEST

TPS UNC-5/16-18-M HEST TPS UNC-5/16-18-M HEST TPS UNC-5/16-18-M HEST

TPS UNC-5/16-18-M HEST

Iscar
Артикул: 4446123
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Steam tempered
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL00802105
DRVS Drive size
6.2 mm
FamilyProducts
HSS Spiral Flute Machine Taps for Unified Coarse Threads for a Wide Range of Materials
FHA Flute helix angle
40 Degree
GRDMFG Grade manufacturers designation
HEST
ID Technical product number
4446123
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
Name Identifying order number

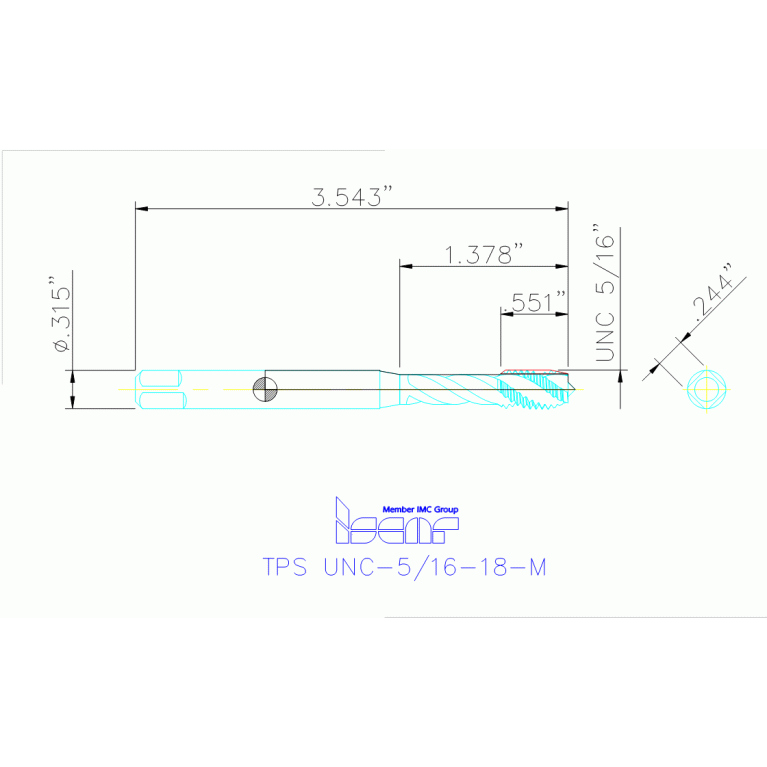

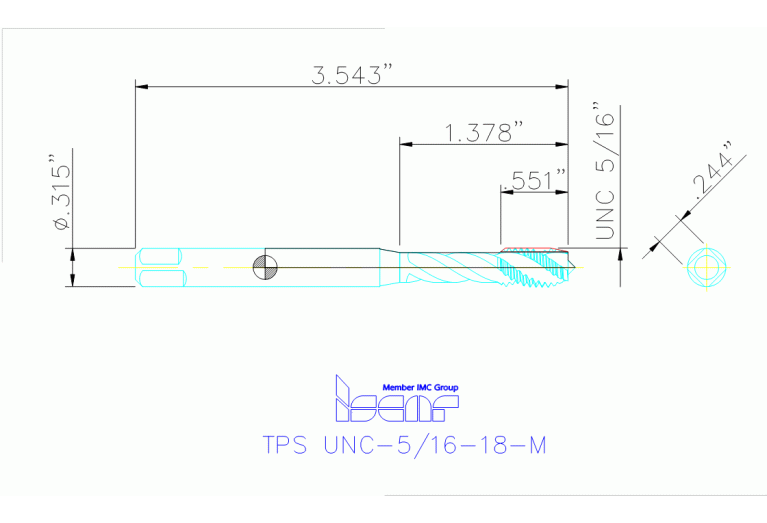

TPS UNC-5/16-18-M HEST
NOF Flute count
3
OAL Overall length
90 mm
TD Thread diameter
7.94 mm
TDFR Thread diameter nominal fraction
5/16 in
THFT Thread form type
UN
THL Thread cutting part length
14 mm
TPI Threads per inch
18 1/in
Working process
No working processes available
WT Weight of item
0.02 kg
