Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank TPS UNC-#5-40-M HEST

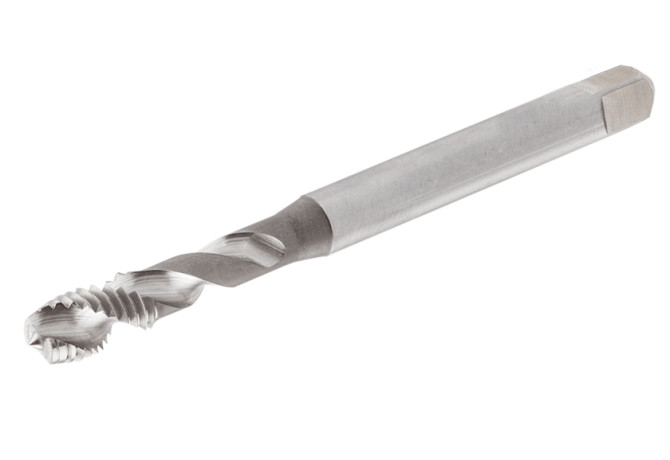

TPS UNC-#5-40-M HEST

Артикул: 4446117

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Steam tempered

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00352105

DRVS Drive size

2.7 mm

FamilyProducts

HSS Spiral Flute Machine Taps for Unified Coarse Threads for a Wide Range of Materials

FHA Flute helix angle

40 Degree

GRDMFG Grade manufacturers designation

HEST

ID Technical product number

4446117

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0035

LOC-03 DCONMS Diameter

3.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00352105

Name Identifying order number

TPS UNC-#5-40-M HEST

NOF Flute count

OAL Overall length

56 mm

TD Thread diameter

3.18 mm

TDZ Thread diameter size

THFT Thread form type

THL Thread cutting part length

7 mm

TPI Threads per inch

40 1/in

Working process

No working processes available
