Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank TPG M-3.5X0.6-H HE

TPG M-3.5X0.6-H HE

TPG M-3.5X0.6-H HE TPG M-3.5X0.6-H HE TPG M-3.5X0.6-H HE

TPG M-3.5X0.6-H HE

Iscar
Артикул: 4445167
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL00402105
DRVS Drive size
3 mm
FamilyProducts

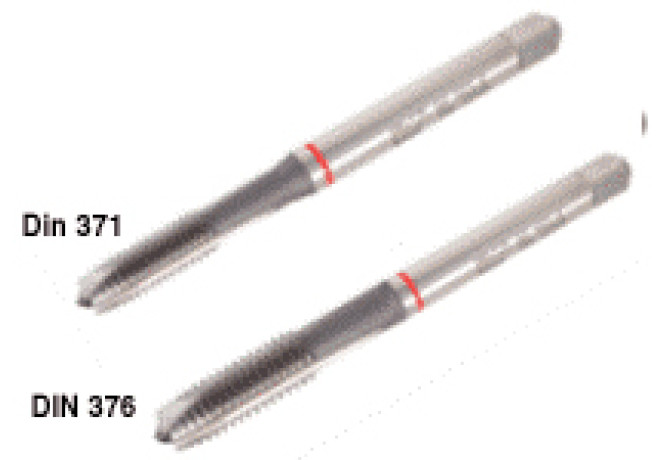

DIN 13 HSS Gun Point Machine Taps for ISO Metric Coarse Threads for Hardened Steel and H.T.A.
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HE
HAND Cutting direction
R - Right
ID Technical product number
4445167
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00402105
Name Identifying order number
TPG M-3.5X0.6-H HE
NOF Flute count
3

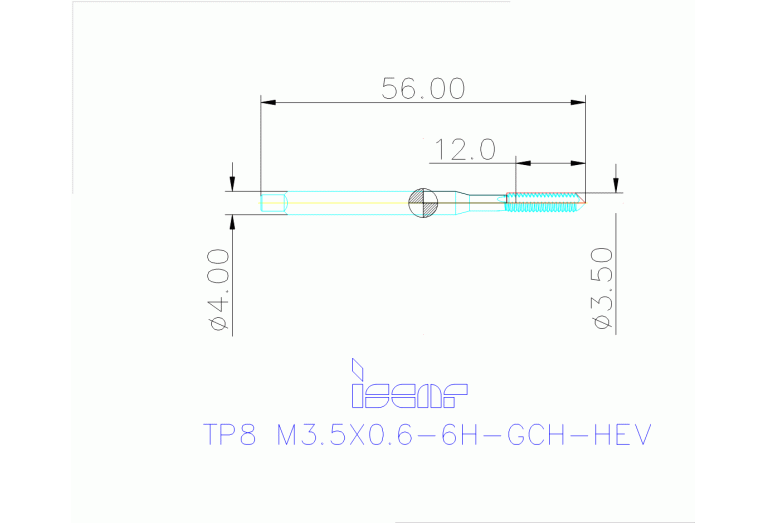

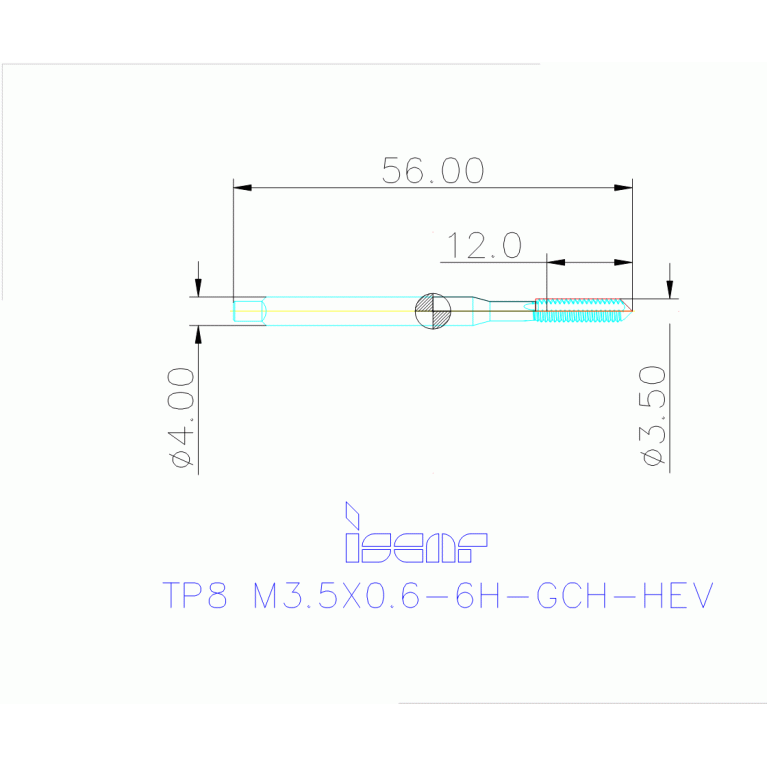

OAL Overall length
56 mm
PLCD Gate diameter
2.9 mm
TD Thread diameter
3.5 mm
THFT Thread form type
M
THL Thread cutting part length
12 mm
TP Thread pitch
0.6 mm
Working process
BG - Tapping
