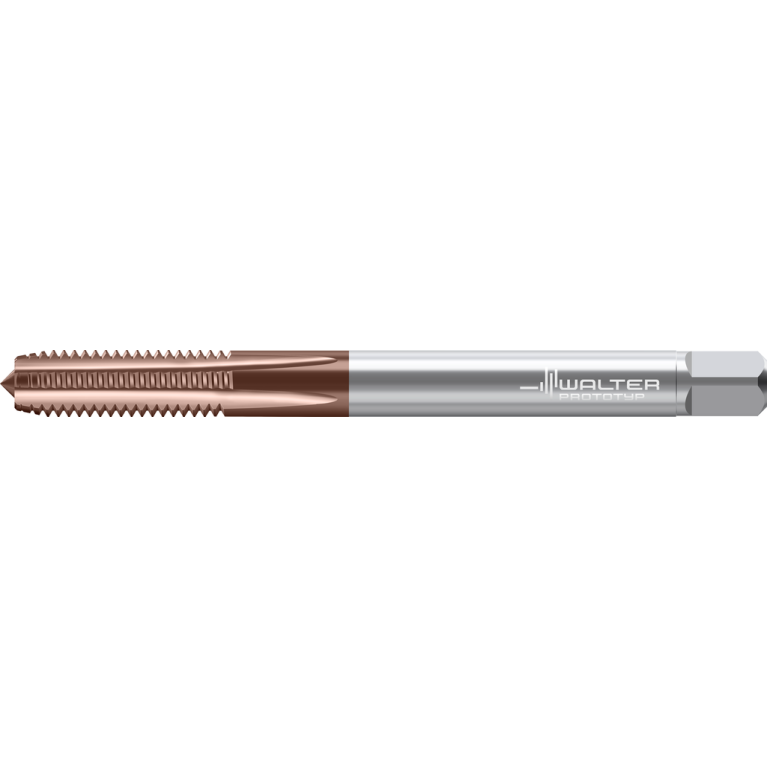

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank TC389-M3-CD-WE10TU

TC389-M3-CD-WE10TU

TC389-M3-CD-WE10TU TC389-M3-CD-WE10TU TC389-M3-CD-WE10TU TC389-M3-CD-WE10TU

TC389-M3-CD-WE10TU

Walter
Артикул: 8205994
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00352105
FamilyProducts
Solid carbide machine taps TC389
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
WE10TU
HAND Cutting direction
R - Right
ID Technical product number
8205994
Interface codes
J6 / J61
ISO
ZYL21F3500h$06
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
9 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL21F3500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
21 mm
Materials
S,H
Name Identifying order number
TC389-M3-CD-WE10TU
NOF Flute count
4
OAL Overall length
57.25 mm
PLCD Gate diameter
2.48 mm
PLG Plug style
D - Kappa r 8°
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
2.25 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
3 mm
THFT Thread form type
M
THL Thread cutting part length
9 mm
THOD Thread designation
M3x0.5-6HX
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.007 kg
