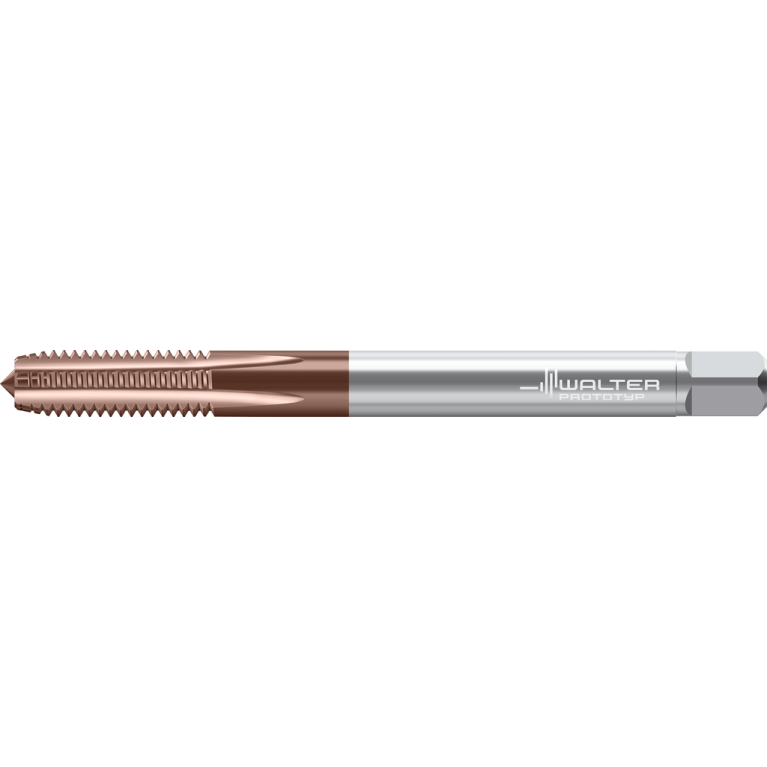

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank TC388-M4-C0-WJ30TU

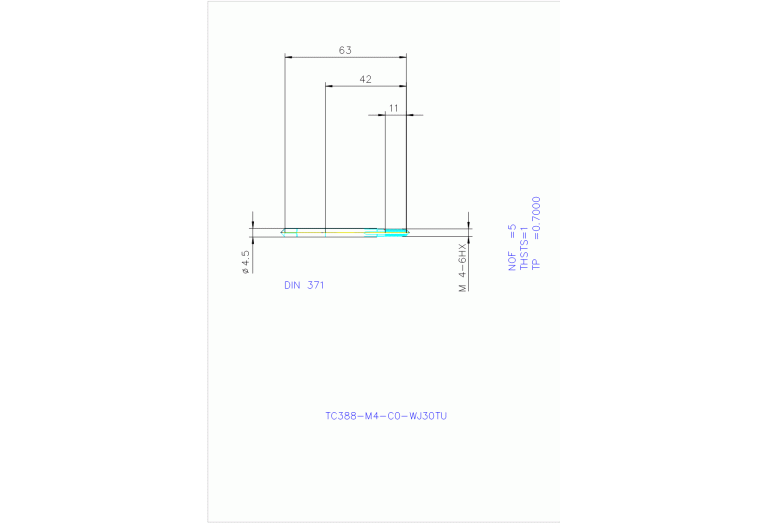

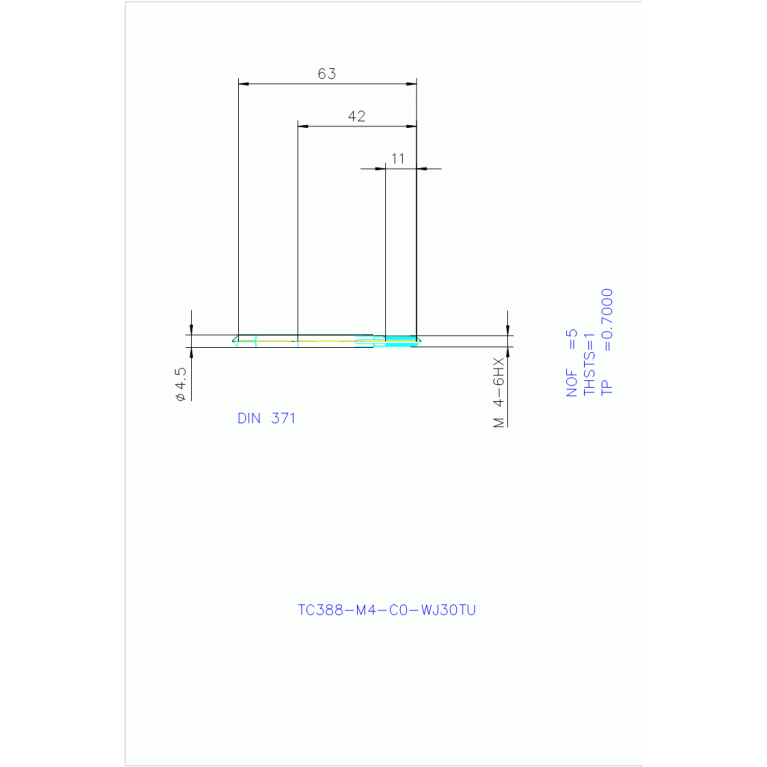

TC388-M4-C0-WJ30TU

TC388-M4-C0-WJ30TU TC388-M4-C0-WJ30TU TC388-M4-C0-WJ30TU TC388-M4-C0-WJ30TU

TC388-M4-C0-WJ30TU

Walter
Артикул: 8205975
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00452105
FamilyProducts
Solid carbide machine taps TC388
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
WJ30TU
HAND Cutting direction
R - Right
ID Technical product number
8205975
Interface codes
J6 / J61
ISO
ZYL21F4500h$06
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
11 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL21F4500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452105
LS Shank length
21 mm
Materials
S,H
Name Identifying order number
TC388-M4-C0-WJ30TU
NOF Flute count
5
OAL Overall length
64.65 mm
PLCD Gate diameter
3.27 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h6
TCL Tap chamfer length
2.1 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
4 mm
THFT Thread form type
M
THL Thread cutting part length
11 mm
THOD Thread designation
M4x0.7-6HX
TP Thread pitch
0.7 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.012 kg
