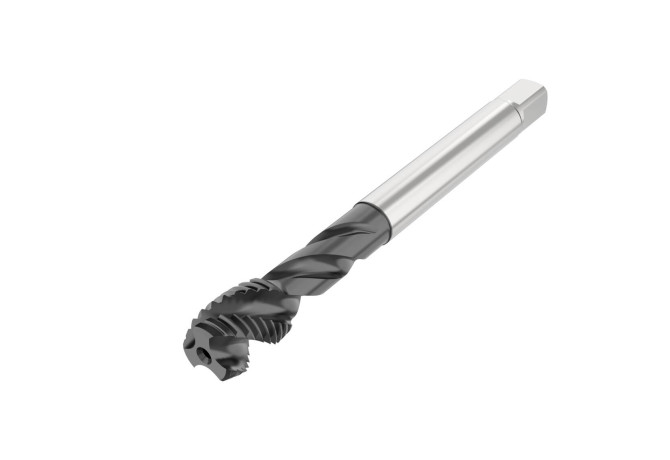

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank T34A-R45H01C05-10X1.5-65R

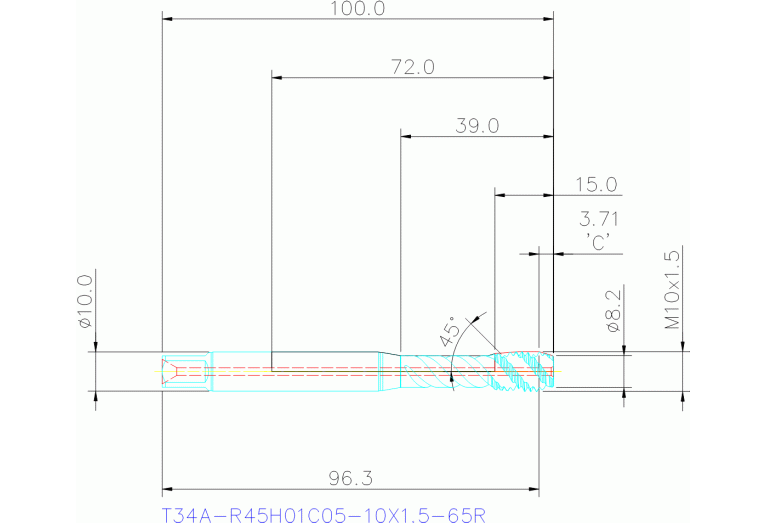

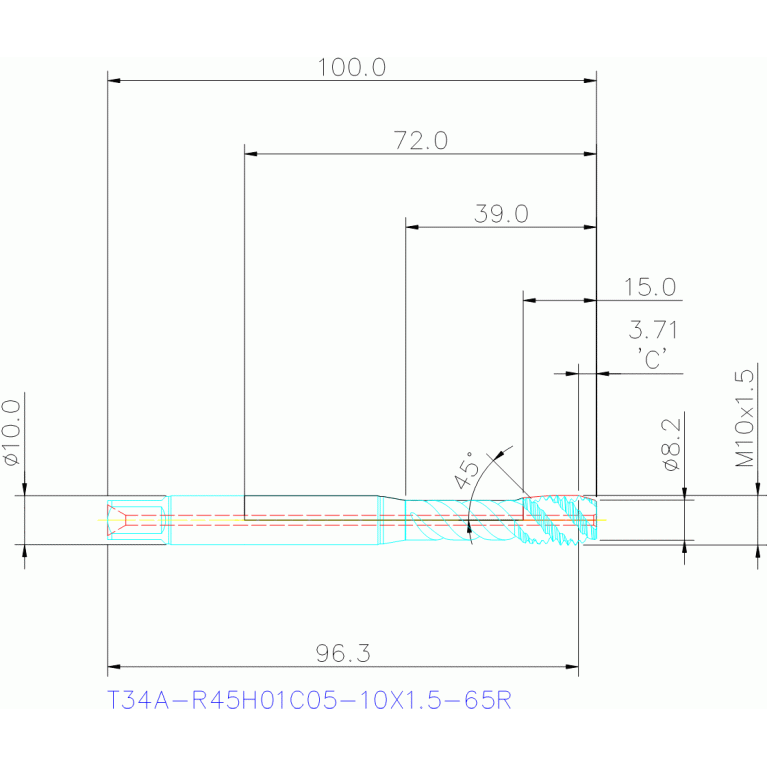

T34A-R45H01C05-10X1.5-65R

T34A-R45H01C05-10X1.5-65R T34A-R45H01C05-10X1.5-65R T34A-R45H01C05-10X1.5-65R T34A-R45H01C05-10X1.5-65R

T34A-R45H01C05-10X1.5-65R

Seco
Артикул: 10138987
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiAIN+WC/C
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01002115
FamilyProducts
T34A-R45H01C05-10X1.5-65R
FHA Flute helix angle
45 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10138987
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
39 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002115
Name Identifying order number
T34A-R45H01C05-10X1.5-65R
NOF Flute count
3

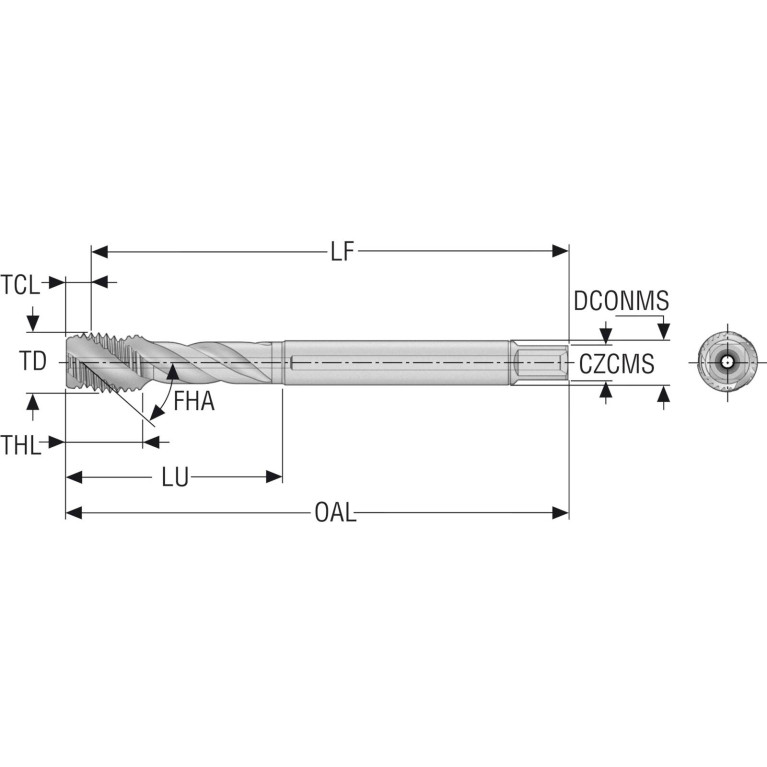

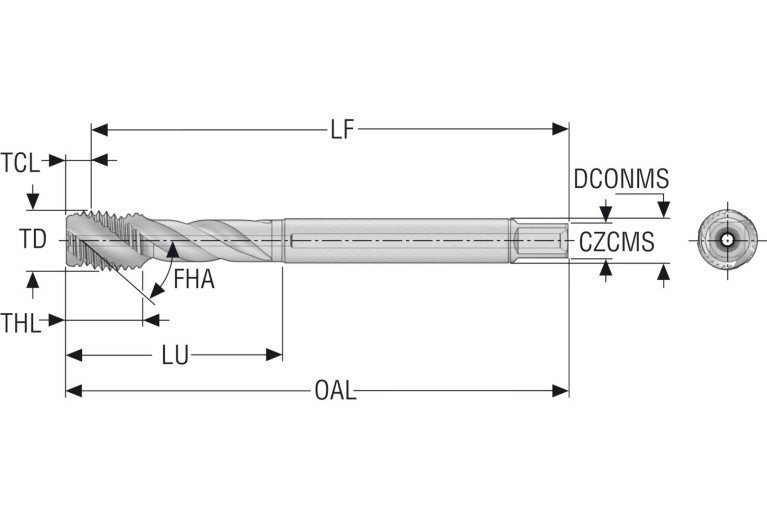

OAL Overall length
96.19 mm
PLCD Gate diameter
8.5 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN371
TCTR Thread tolerance class
6HX
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
17 mm
THOD Thread designation
M10x1.5-6HX
TP Thread pitch
1.5 mm
Working process
BG - Tapping
WT Weight of item
0.045 kg
