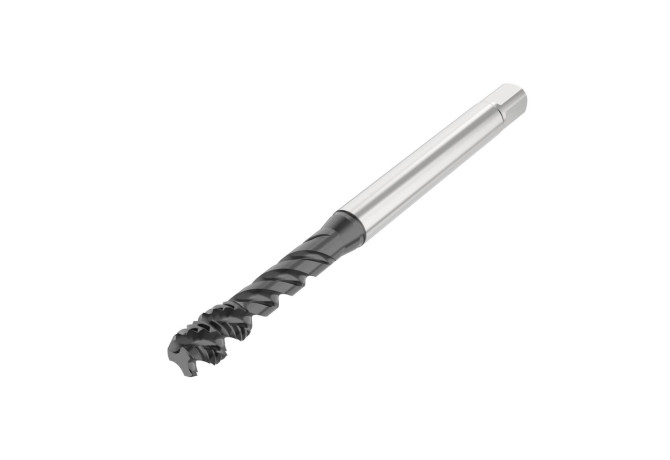

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank T34-R45H16E03-5/16-18-21R

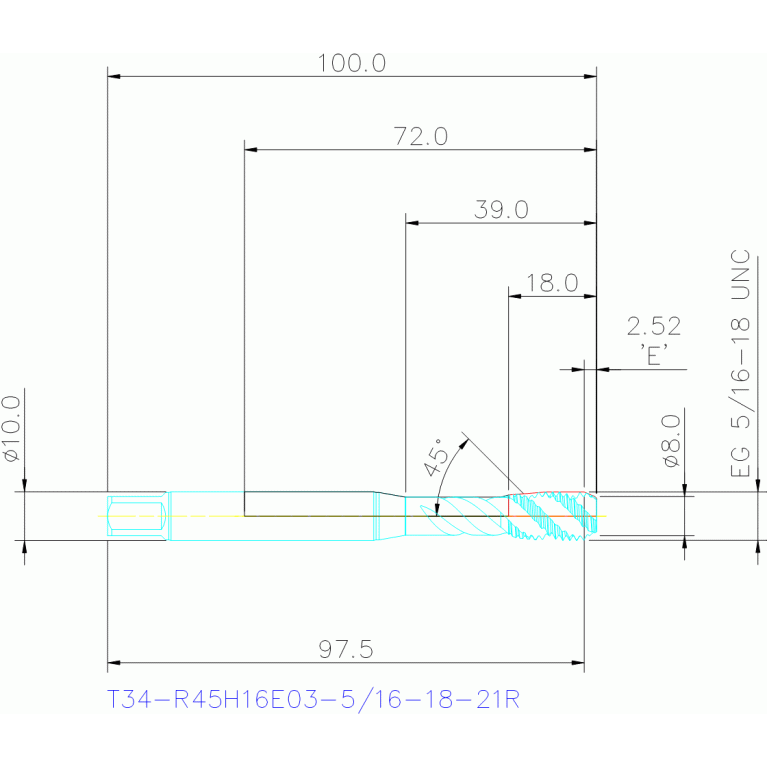

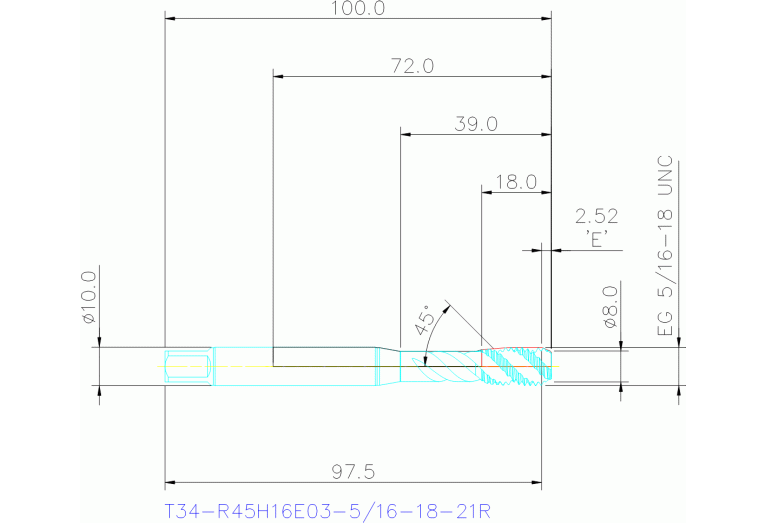

T34-R45H16E03-5/16-18-21R

T34-R45H16E03-5/16-18-21R T34-R45H16E03-5/16-18-21R T34-R45H16E03-5/16-18-21R T34-R45H16E03-5/16-18-21R

T34-R45H16E03-5/16-18-21R

Seco
Артикул: 10139104
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAIN+WC/C
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01002105
FamilyProducts
T34-R45H16E03-5/16-18-21R
FHA Flute helix angle
45 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10139104
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
39 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
Name Identifying order number
T34-R45H16E03-5/16-18-21R
NOF Flute count
3

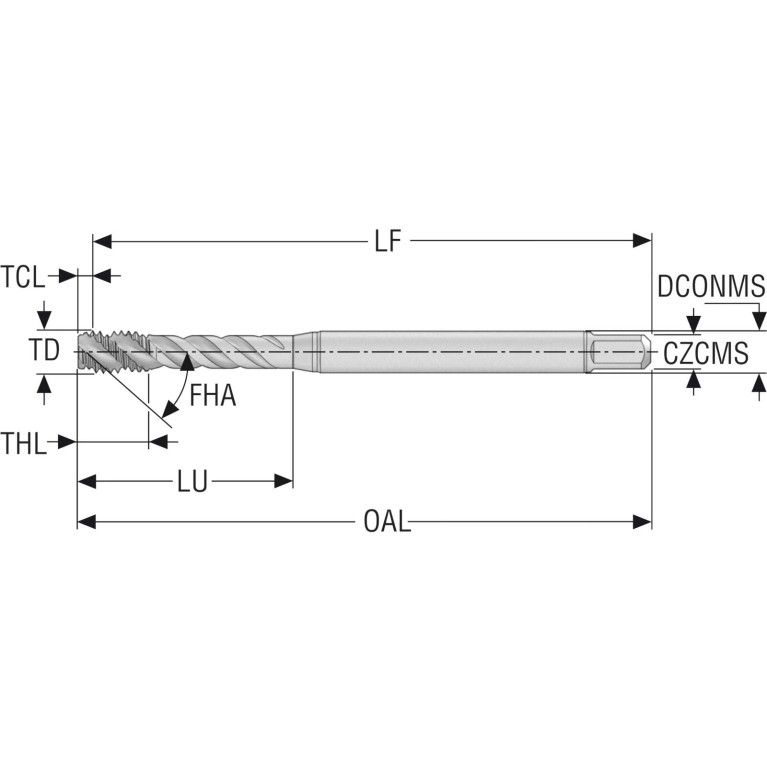

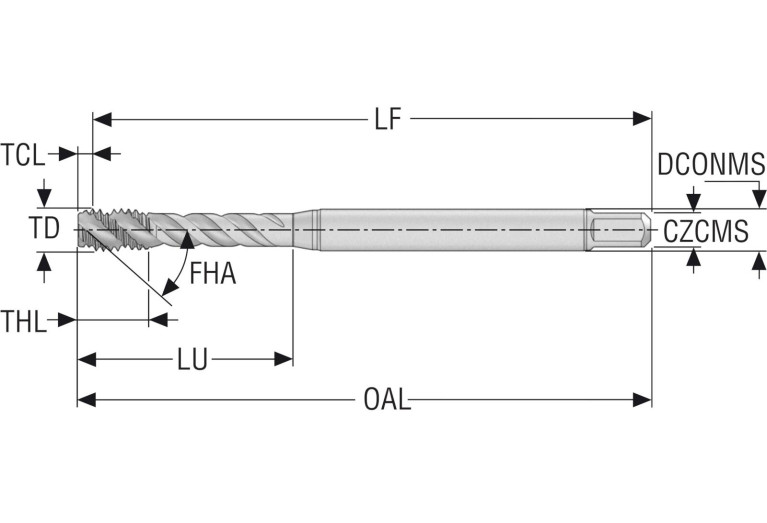

OAL Overall length
97.5 mm
PLCD Gate diameter
8.4 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
DIN371
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
5/16 in
THFT Thread form type
EGUNC
THL Thread cutting part length
18 mm
TPI Threads per inch
18 1/in
Working process
BG - Tapping
WT Weight of item
0.047 kg
