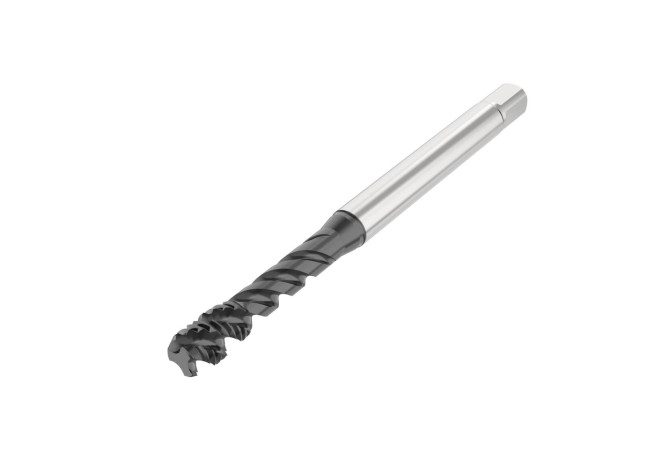

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank T34-R45H08C03-5/16-18-22R

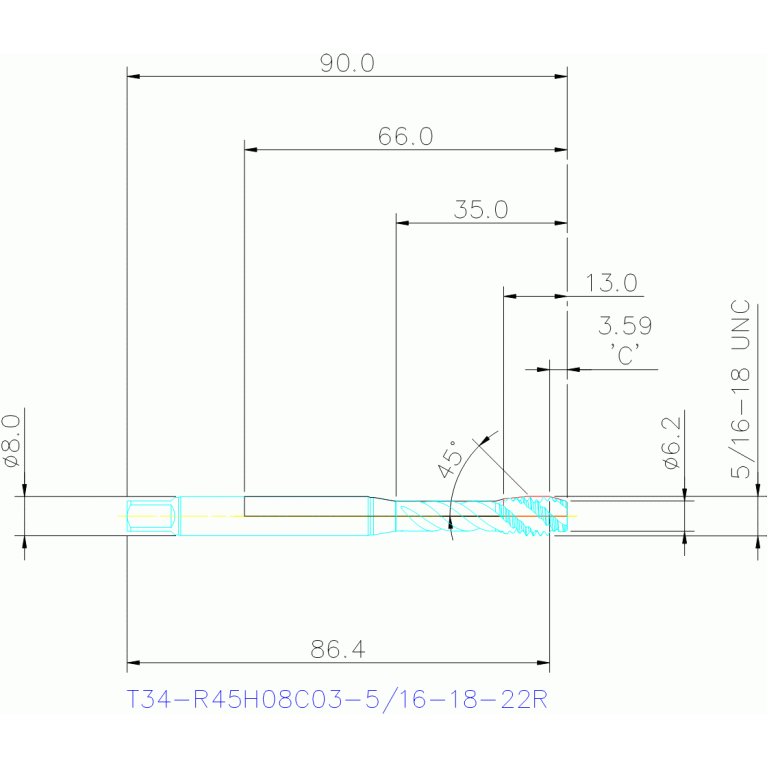

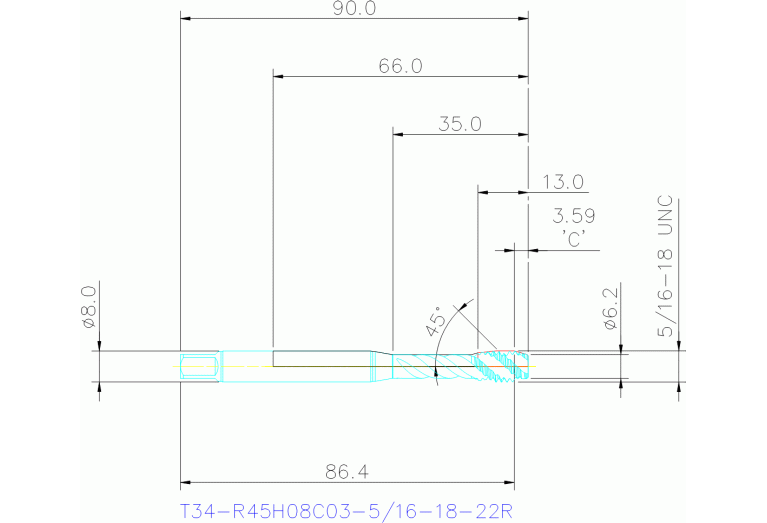

T34-R45H08C03-5/16-18-22R

T34-R45H08C03-5/16-18-22R T34-R45H08C03-5/16-18-22R T34-R45H08C03-5/16-18-22R T34-R45H08C03-5/16-18-22R

T34-R45H08C03-5/16-18-22R

Seco
Артикул: 10139061
В наличии
В корзину
Описание
Характеристики

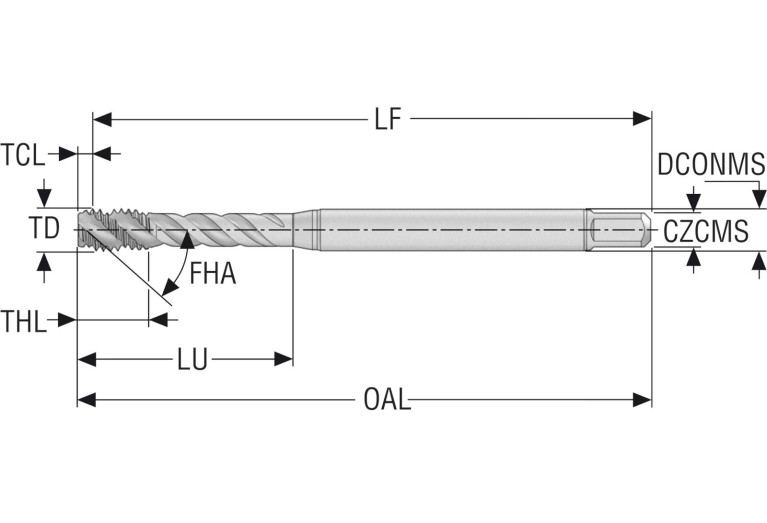

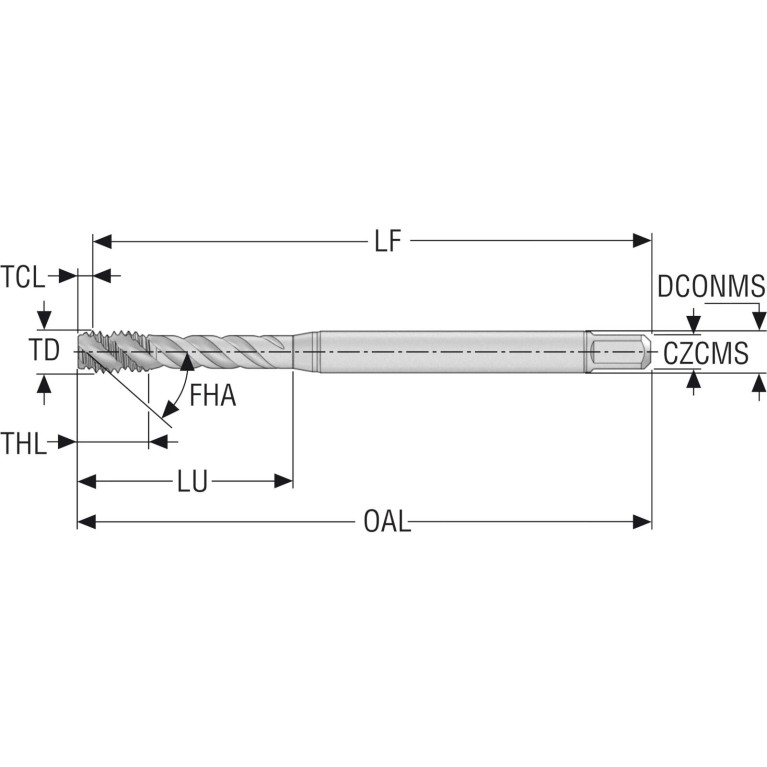

BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAIN+WC/C
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00802105
FamilyProducts
T34-R45H08C03-5/16-18-22R
FHA Flute helix angle
45 Degree
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
10139061
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
Name Identifying order number
T34-R45H08C03-5/16-18-22R
NOF Flute count
3
OAL Overall length
86.41 mm
PLCD Gate diameter
6.6 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN371
TCTR Thread tolerance class
2BX
TDFR Thread diameter nominal fraction
5/16 in
THFT Thread form type
UNC
THL Thread cutting part length
13 mm
THOD Thread designation
UNC5/16-18-2BX
TPI Threads per inch
18 1/in
Working process
BG - Tapping
WT Weight of item
0.027 kg
