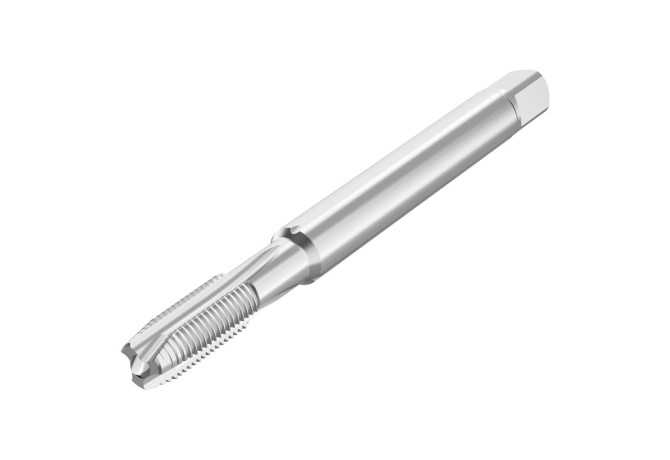

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

MTP-EGM4X0.7ISO4H-TB-S013

Seco

Артикул: 10001218

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00602105

FamilyProducts

MTP-EGM4X0.7ISO4H-TB-S013

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

10001218

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

16 mm

LOC-03 CCFMS Connection code form

21

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

Name Identifying order number

MTP-EGM4X0.7ISO4H-TB-S013

NOF Flute count

3

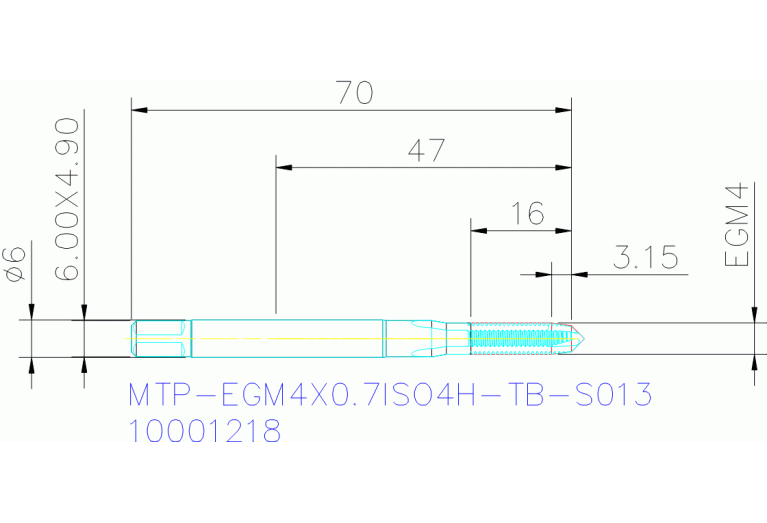

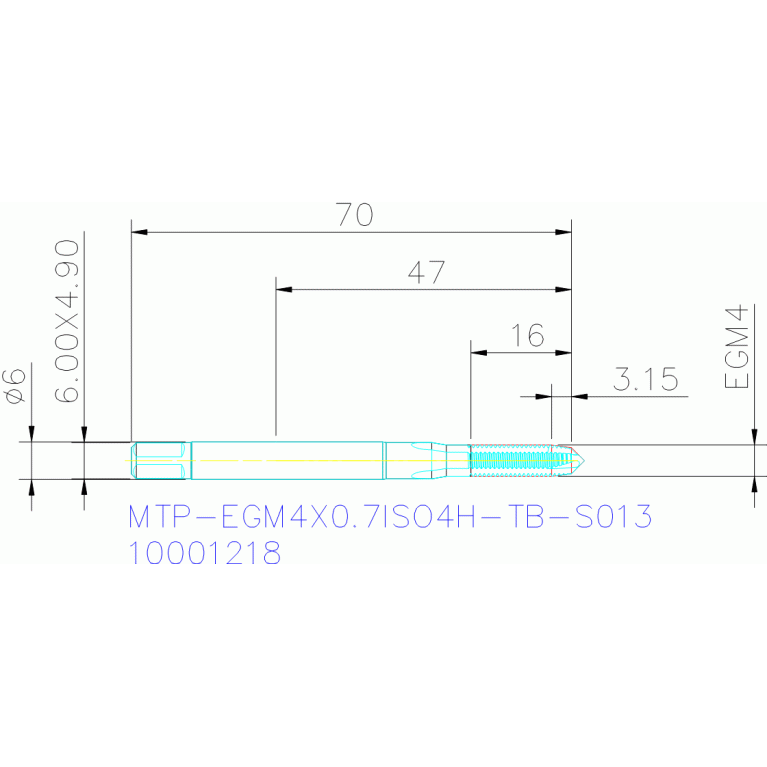

OAL Overall length

66.85 mm

PLCD Gate diameter

4.2 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

DIN40435

TCTR Thread tolerance class

4H

TD Thread diameter

4.984 mm

THFT Thread form type

M

THL Thread cutting part length

16 mm

THOD Thread designation

M4.984x0.7-4H

TP Thread pitch

0.7 mm

Working process

BG - Tapping

WT Weight of item

0.012 kg
