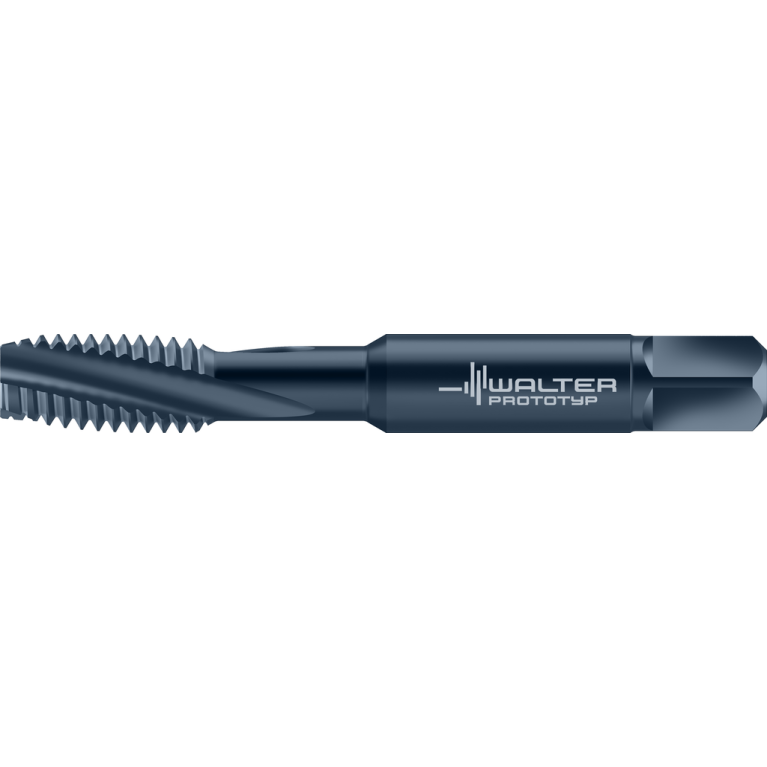

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank A2340661S-UNF1

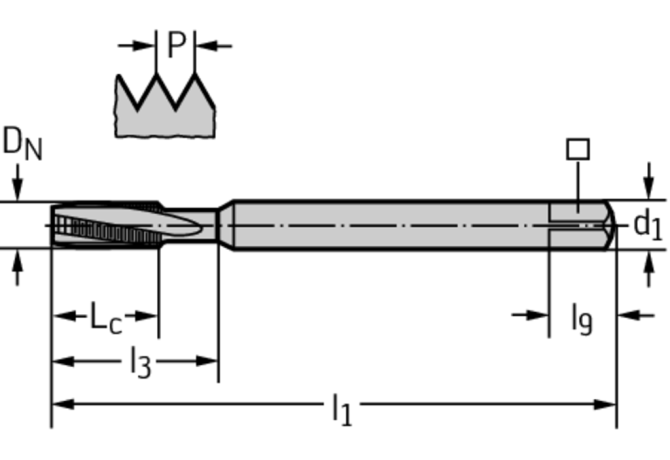

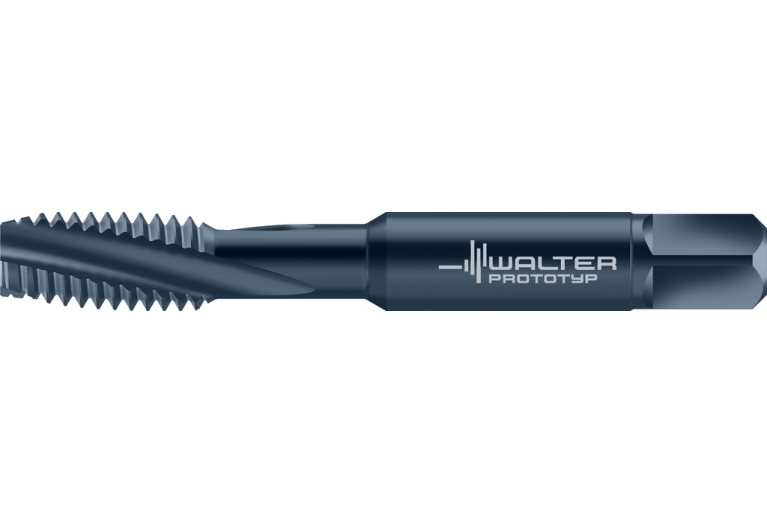

A2340661S-UNF1

A2340661S-UNF1 A2340661S-UNF1 A2340661S-UNF1 A2340661S-UNF1

A2340661S-UNF1

Walter
Артикул: 8046447
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Vaporisiert
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01412125
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VAP
HAND Cutting direction
R - Right
ID Technical product number
8046447
Interface codes
J6 / J61
ISO
ZYL21R1410h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
7 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0141
LOC-03 DCONMS Diameter
3.581 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R1410h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01412125
LS Shank length
36 mm
Materials
P,N,S
Name Identifying order number

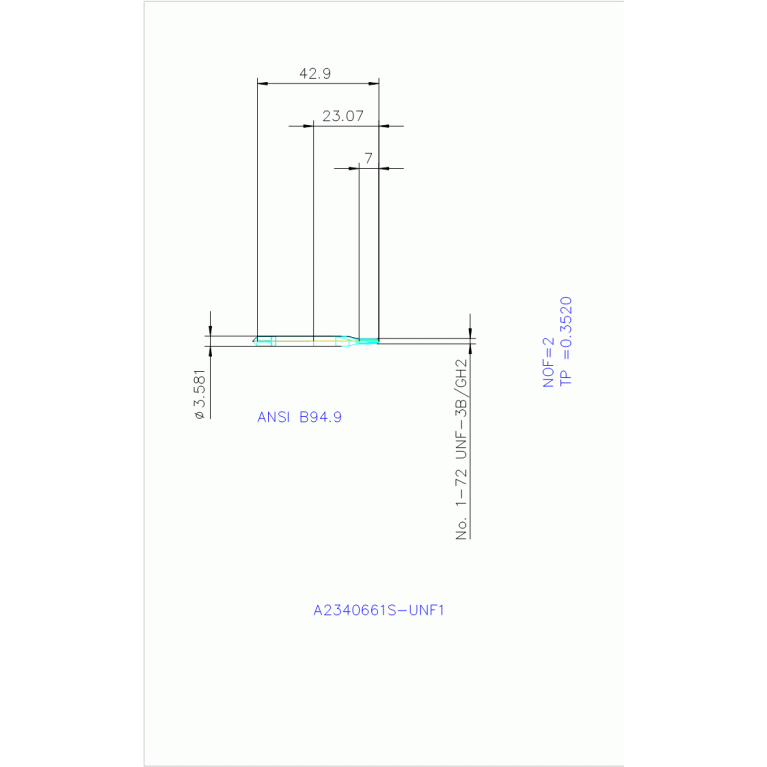

A2340661S-UNF1
NOF Flute count
2
OAL Overall length
43.65 mm
PLCD Gate diameter
1.48 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
ANSI B94.9
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
0.62 mm
TCTR Thread tolerance class
3B
TDIN Thread diameter nominal inch
0.073 in
TDZ Thread diameter size
1
THFT Thread form type
UNF
THL Thread cutting part length
7 mm
THOD Thread designation
UNF1-72-3B
TPI Threads per inch
72 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.005 kg
