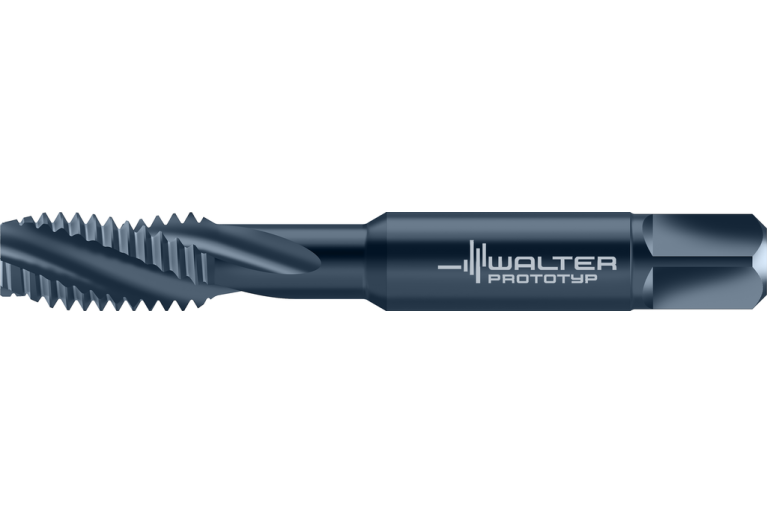

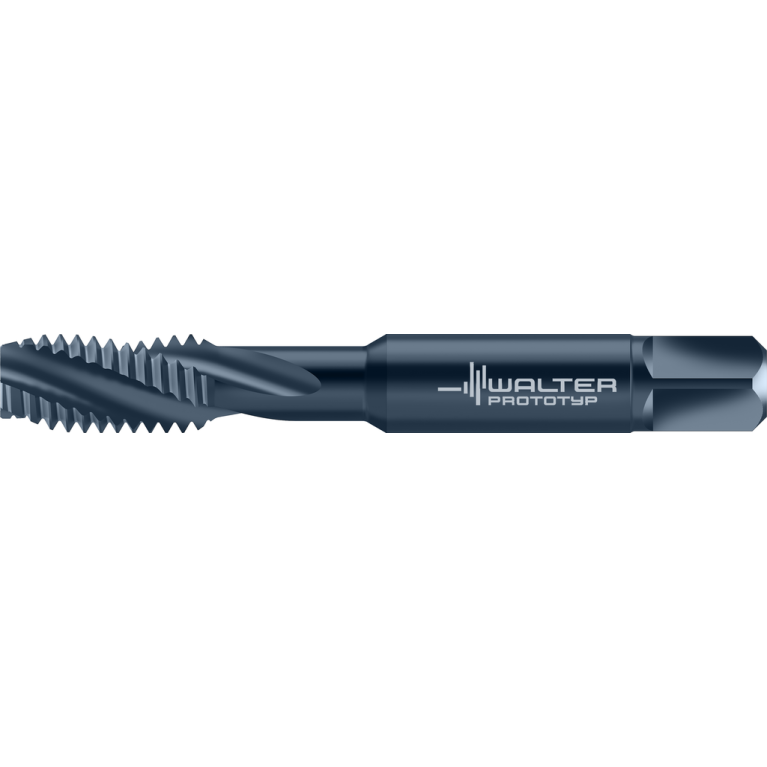

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank A234002S-UNF12

A234002S-UNF12

A234002S-UNF12 A234002S-UNF12 A234002S-UNF12 A234002S-UNF12

A234002S-UNF12

Walter
Артикул: 8046387
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Vaporisiert
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02202125
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
25 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VAP
HAND Cutting direction
R - Right
ID Technical product number
8046387
Interface codes
J6 / J61
ISO
ZYL21R2200h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
38.2 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
5.588 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R2200h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02202125
LS Shank length
42 mm
Materials
P,S
Name Identifying order number
A234002S-UNF12
NOF Flute count
3
OAL Overall length
62.69 mm
PLCD Gate diameter
4.53 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
ANSI B94.9
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.27 mm
TCTR Thread tolerance class
3B
TDIN Thread diameter nominal inch
0.216 in
TDZ Thread diameter size
12
THFT Thread form type
UNF
THL Thread cutting part length
20 mm
THOD Thread designation
UNF12-28-3B
TPI Threads per inch
28 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.011 kg
