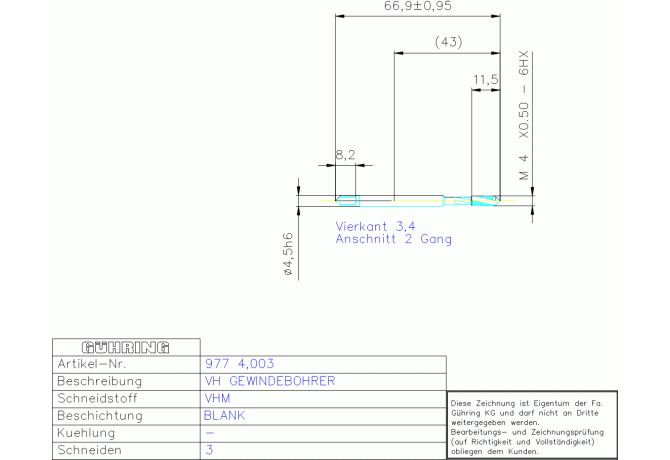

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 977 4.003

977 4.003

Артикул: 9009770040030

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00452105

DRVS Drive size

3.4 mm

FamilyProducts

VHM IKZ -GBO M 4X0,5 DIN 371 RN-15 C

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

46.9 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9009770040030

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

21 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0045

LOC-03 DCONMS Diameter

4.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00452105

LS Shank length

29.5 mm

Name Identifying order number

977 4.003

NOF Flute count

OAL Overall length

63 mm

PLCD Gate diameter

3.46 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 371

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

1 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

4 mm

THFT Thread form type

THL Thread cutting part length

10 mm

THOD Thread designation

MF4x0.5-6HX

TP Thread pitch

0.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.163 kg
