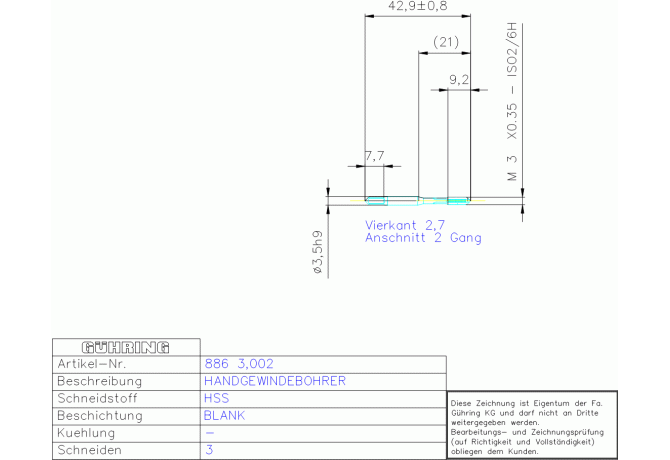

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 886 3.002

886 3.002

886 3.002 886 3.002

886 3.002

Gühring
Артикул: 9008860030020
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00352105
DRVS Drive size
2.7 mm
FamilyProducts
HSS HAND-GBO M 3X0,35 DIN 2181RN FERTIGS
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Technical product number
9008860030020
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
18 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
19.8 mm
Name Identifying order number
886 3.002
NOF Flute count
3
OAL Overall length
40 mm
PLCD Gate diameter
2.62 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2181
TAPSC Set identifier
F
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
0.7 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
3 mm
THFT Thread form type
MF
THL Thread cutting part length
8 mm
THOD Thread designation
MF3x0.35-ISO2/6H
TP Thread pitch
0.35 mm
TTPID Tap type identifier
2 - Hand tap
Working process
No working processes available
WT Weight of item
0.002 kg
