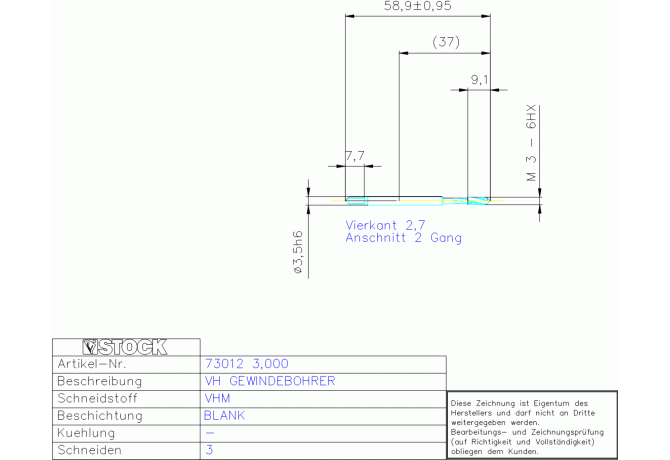

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 73012 3.000

73012 3.000

73012 3.000 73012 3.000

73012 3.000

Gühring
Артикул: 73012 3.000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.008 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00352105
DRVS Drive size
2.7 mm
FamilyProducts
VHM MASCH,-GBO M 3 DIN 371 RN-15 IKZ
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
35.2 mm
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF-K
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
18 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
29.5 mm
Name Identifying order number
73012 3.000
NOF Flute count
3
OAL Overall length
56 mm
PLCD Gate diameter
2.46 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371
TCL Tap chamfer length
1 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
3 mm
THFT Thread form type
M
THL Thread cutting part length
8 mm
THOD Thread designation
M3x0.5-6HX
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.022 kg
