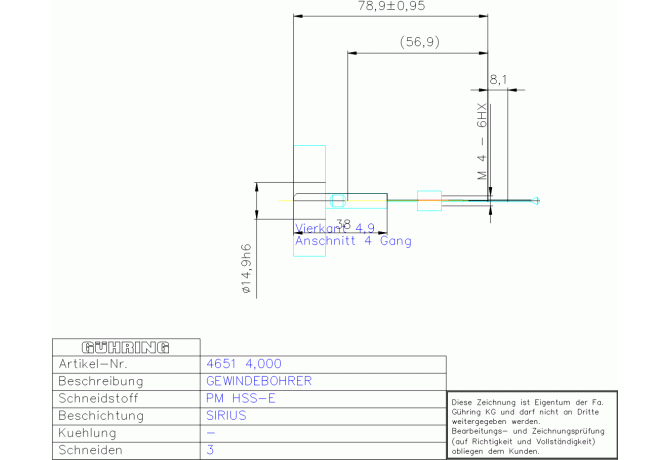

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 4651 4.000

4651 4.000

Артикул: 9046510040000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

NANO-A

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00601005

DRVS Drive size

4.9 mm

FamilyProducts

PM HSSE SIRIUS-GBO DIN371~ VAB M 4 B-6,0

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9046510040000

Interface codes

J6 / J61

ISO

ZYL10F6000h$06

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

21 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LS Shank length

38 mm

Name Identifying order number

4651 4.000

NOF Flute count

OAL Overall length

63 mm

PLCD Gate diameter

3.24 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

DIN 371~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.8 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

4 mm

THFT Thread form type

THL Thread cutting part length

12 mm

THOD Thread designation

M4x0.7-6HX

TP Thread pitch

0.7 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.004 kg
