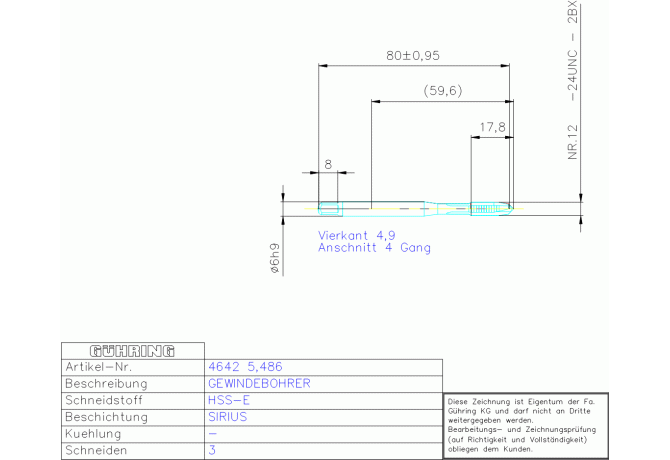

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 4642 5.486

4642 5.486

4642 5.486 4642 5.486

4642 5.486

Gühring
Артикул: 9046420054860
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
NANO-A
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00602105
DRVS Drive size
4.9 mm
FamilyProducts
HSS-E SIRIUS GBO VA-B NR,12 -24UNC 2BX
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9046420054860
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
LS Shank length
44.4 mm
Name Identifying order number
4642 5.486
NOF Flute count
3
OAL Overall length
80 mm
PLCD Gate diameter
4.34 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN371~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.232 mm
TCTR Thread tolerance class
2BX
TDZ Thread diameter size
12
THFT Thread form type
UNC
THL Thread cutting part length
16 mm
THOD Thread designation
UNC12-24-2BX
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.017 kg
