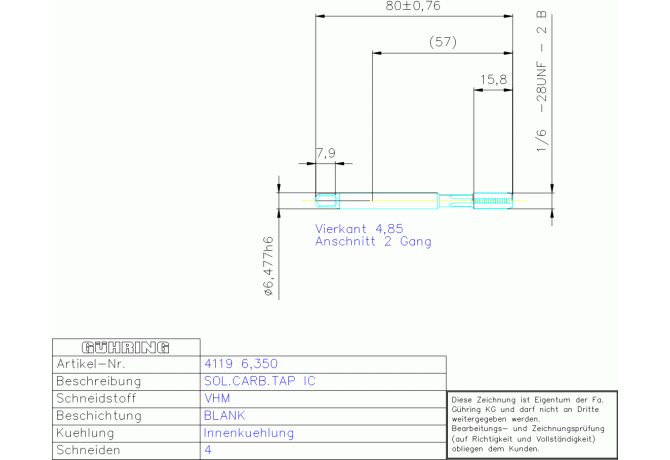

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 4119 6.350

4119 6.350

4119 6.350 4119 6.350

4119 6.350

Gühring
Артикул: 4119 6.350
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.009 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00642115
DRVS Drive size
4.85 mm
FamilyProducts
VHM KI-GBO DIN/ANSI H-C 1/4 -28 UNF
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF-K
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0064
LOC-03 DCONMS Diameter
6.477 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00642115
LS Shank length
38 mm
Name Identifying order number
4119 6.350
NOF Flute count
4
OAL Overall length
80 mm
PLCD Gate diameter
5.37 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 372
TCL Tap chamfer length
1.814 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1/4 in
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
UNF
THL Thread cutting part length
16 mm
THOD Thread designation
UNF1/4-28-2B
TP Thread pitch
0.907 mm
TPI Threads per inch
28 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.006 kg
