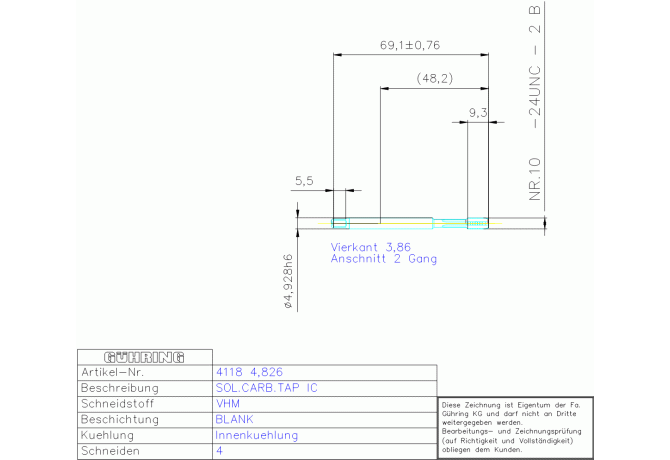

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 4118 4.826

4118 4.826

4118 4.826

Gühring

Артикул: 4118 4.826

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00492115

DRVS Drive size

3.86 mm

FamilyProducts

VHM KI-GBO DIN/ANSI H-C NR,10 -24 UNC

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

25 mm

LOC-03 CCFMS Connection code form

21

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0049

LOC-03 DCONMS Diameter

4.928 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00492115

LS Shank length

30 mm

Name Identifying order number

4118 4.826

NOF Flute count

4

OAL Overall length

70 mm

PLCD Gate diameter

3.68 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

WN 371

TCL Tap chamfer length

2.116 mm

TCTR Thread tolerance class

2B

TDZ Thread diameter size

10

THFT Thread form type

UNC

THL Thread cutting part length

10 mm

THOD Thread designation

UNC10-24-2B

TP Thread pitch

1.058 mm

TPI Threads per inch

24 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.016 kg
