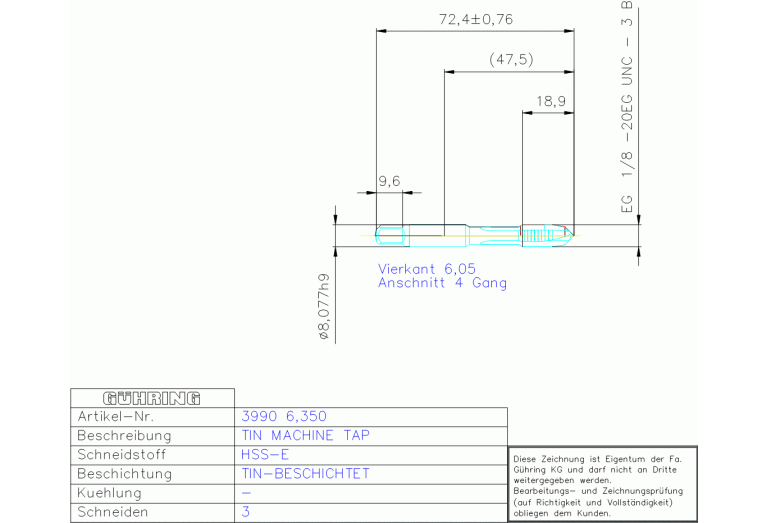

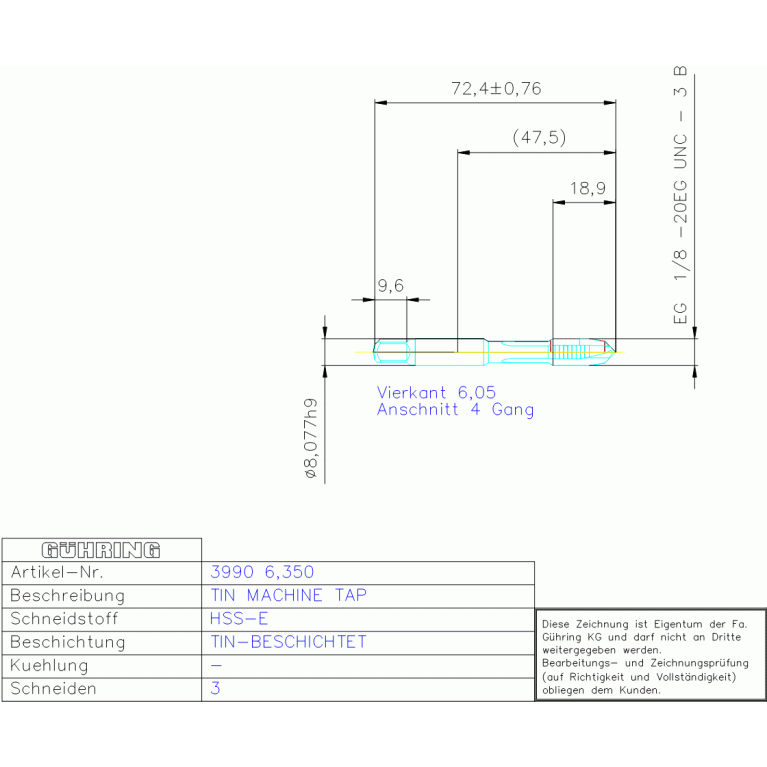

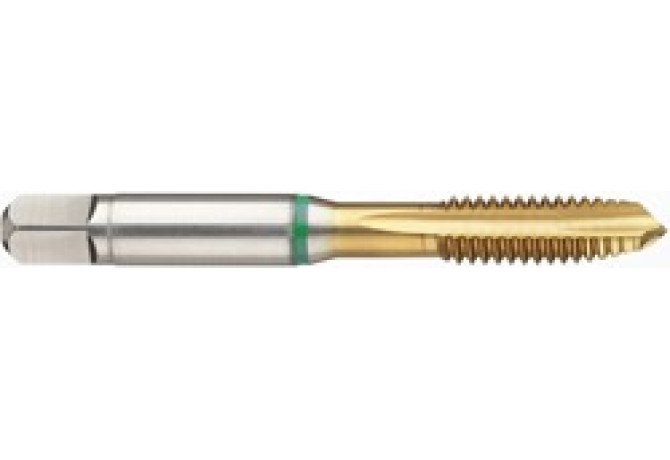

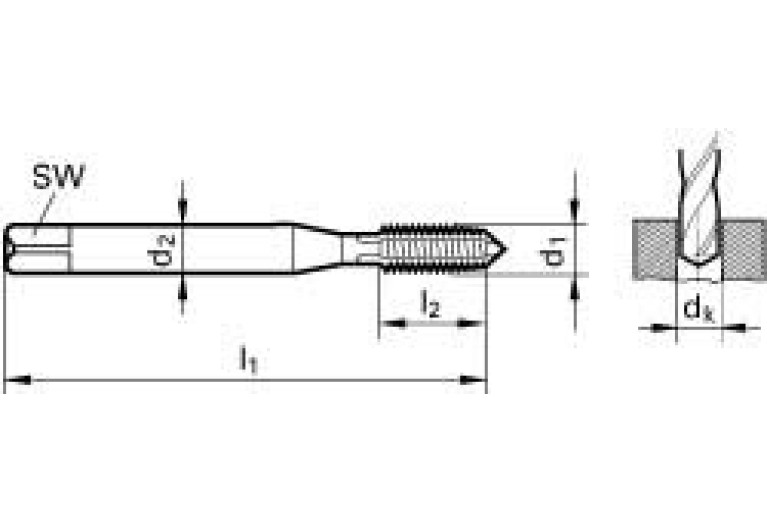

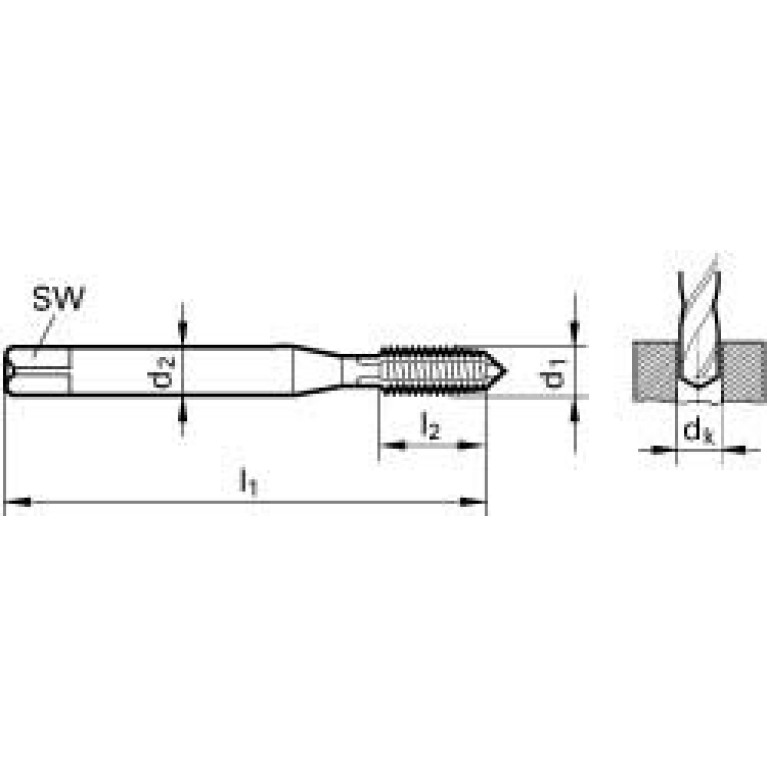

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3990 6.350

3990 6.350

3990 6.350 3990 6.350 3990 6.350 3990 6.350

3990 6.350

Gühring
Артикул: 3990 6.350
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00802105
DRVS Drive size
6.05 mm
FamilyProducts
HSSE TIN GBO TYP UN-B EG 1/4 -20 UNC 3 B
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8.077 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
LS Shank length
32.7 mm
Name Identifying order number
3990 6.350
NOF Flute count
3
OAL Overall length
69.1 mm
PLCD Gate diameter
6.63 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
WN 377
TCL Tap chamfer length
5.08 mm
TCTR Thread tolerance class
3B
TDFR Thread diameter nominal fraction
1/4 in
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
EG UNC
THL Thread cutting part length
16 mm
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.02 kg
