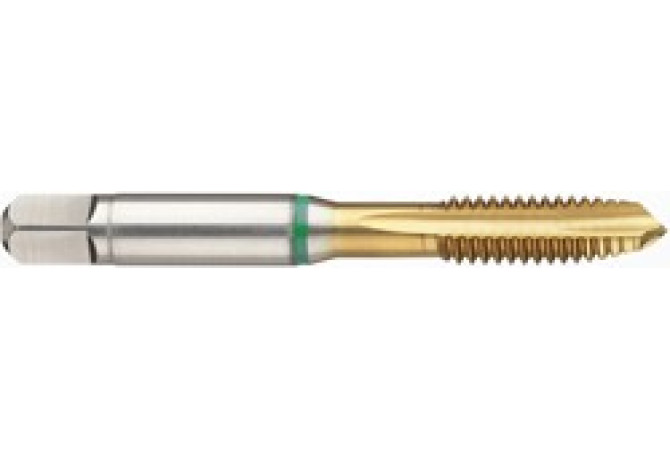

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3990 4.826

3990 4.826

3990 4.826 3990 4.826 3990 4.826 3990 4.826

3990 4.826

Gühring
Артикул: 3990 4.826
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00642105
DRVS Drive size
4.85 mm
FamilyProducts
HSSE TIN GBO TYP UN-B EG NR,10-24UNC 3 B
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0064
LOC-03 DCONMS Diameter
6.477 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00642105
LS Shank length
32.1 mm
Name Identifying order number
3990 4.826
NOF Flute count
3
OAL Overall length
63.5 mm
PLCD Gate diameter
5.06 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
WN 377
TCL Tap chamfer length
4.232 mm
TCTR Thread tolerance class
3B
TDZ Thread diameter size
10
THFT Thread form type
EG UNC
THL Thread cutting part length
16 mm
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.011 kg
