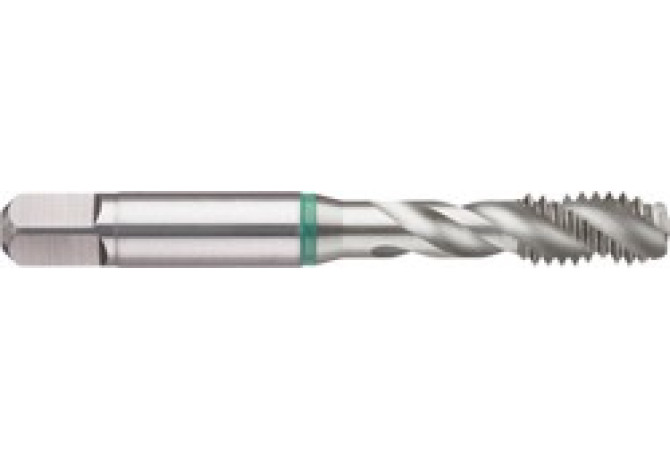

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3920 9.525

3920 9.525

3920 9.525 3920 9.525 3920 9.525 3920 9.525

3920 9.525

Gühring
Артикул: 3920 9.525
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00962105
DRVS Drive size
7.26 mm
FamilyProducts
HSS-E ANSI GBO 3/8 -24 UNF C UN-40° C
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
35.7 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
37 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0096
LOC-03 DCONMS Diameter
9.677 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00962105
LS Shank length
35.9 mm
Name Identifying order number
3920 9.525
NOF Flute count
3
OAL Overall length
74.7 mm
PLCD Gate diameter
8.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 374
TCL Tap chamfer length
2.116 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
UNF
THL Thread cutting part length
11 mm
THOD Thread designation
UNF3/8-24-2B
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.034 kg
