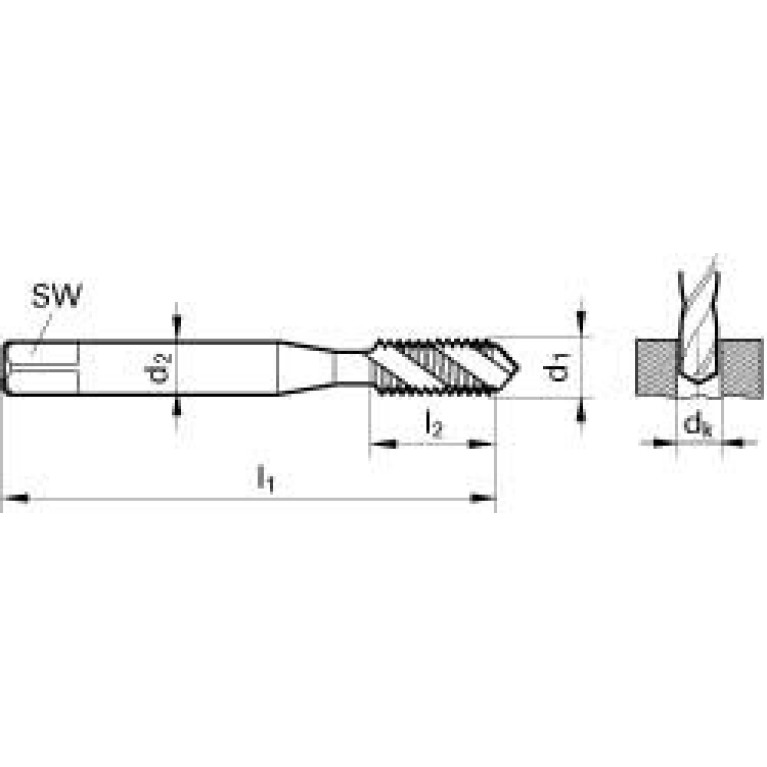

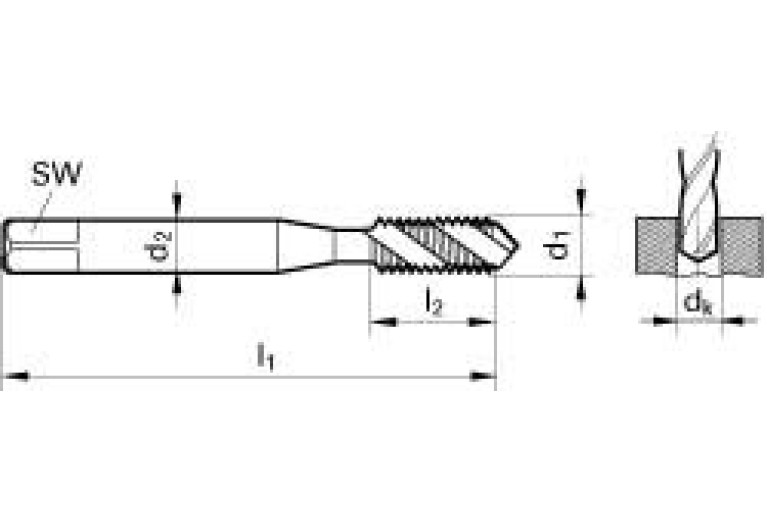

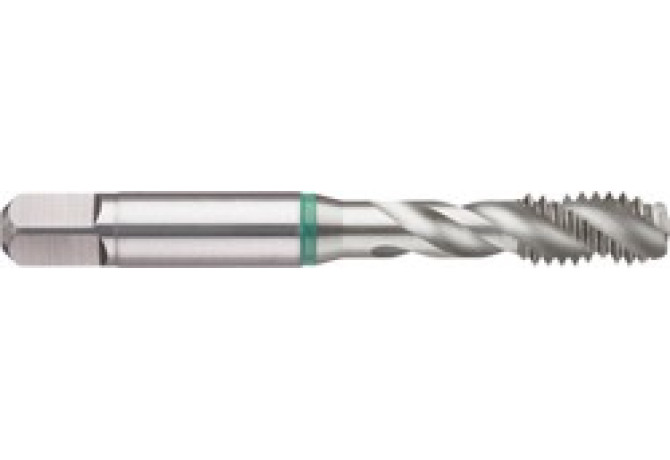

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3920 4.166

3920 4.166

3920 4.166 3920 4.166 3920 4.166 3920 4.166

3920 4.166

Gühring

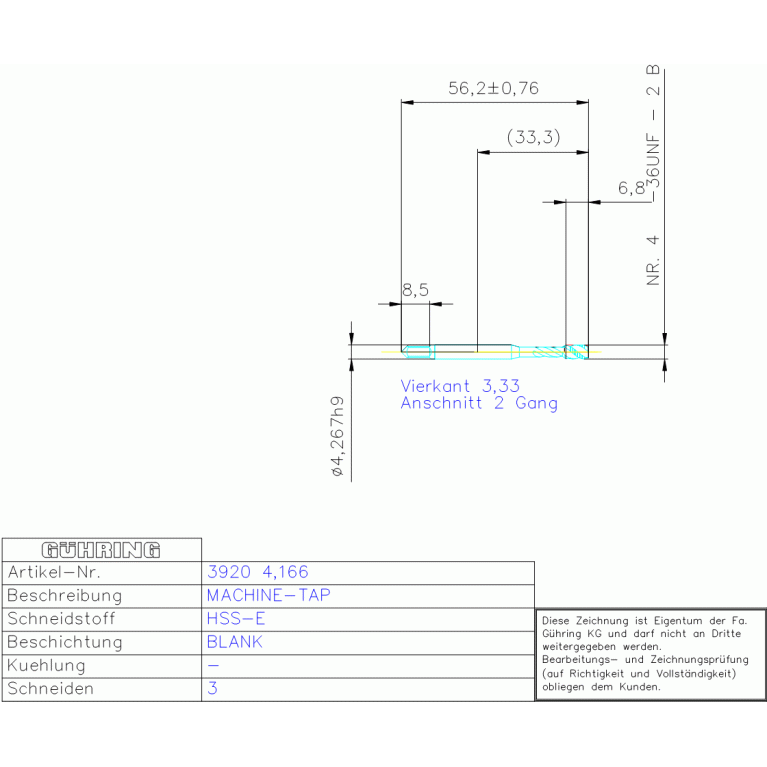

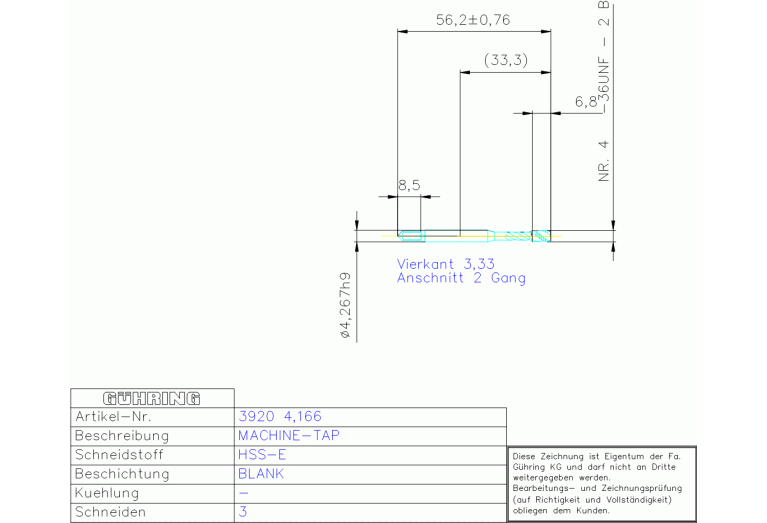

Артикул: 3920 4.166
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00422105
DRVS Drive size
3.33 mm
FamilyProducts
HSS-E ANSI GBO NR, 8 -36 UNF C UN-40° C
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
15.6 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0042
LOC-03 DCONMS Diameter
4.267 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00422105
LS Shank length
30.8 mm
Name Identifying order number
3920 4.166
NOF Flute count
3
OAL Overall length
54.1 mm
PLCD Gate diameter
3.4 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 374
TCL Tap chamfer length
1.412 mm
TCTR Thread tolerance class
2B
TDZ Thread diameter size
8
THFT Thread form type
UNF
THL Thread cutting part length
7 mm
THOD Thread designation
UNF8-36-2B
TP Thread pitch
0.706 mm
TPI Threads per inch
36 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.007 kg
