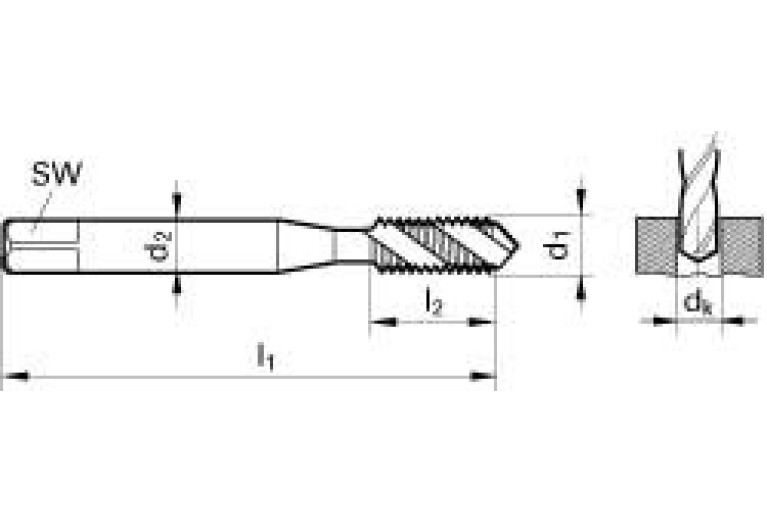

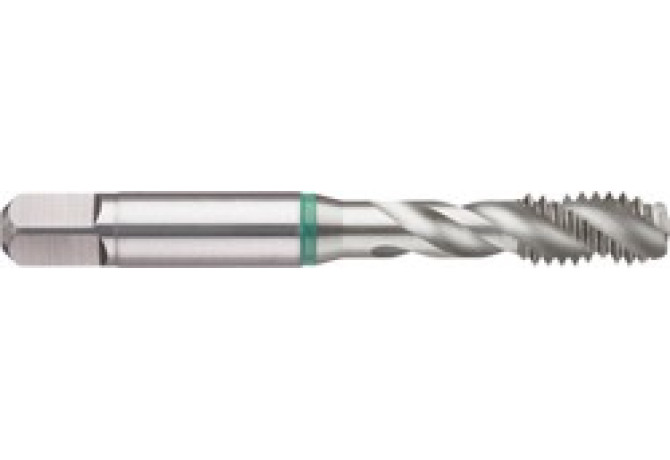

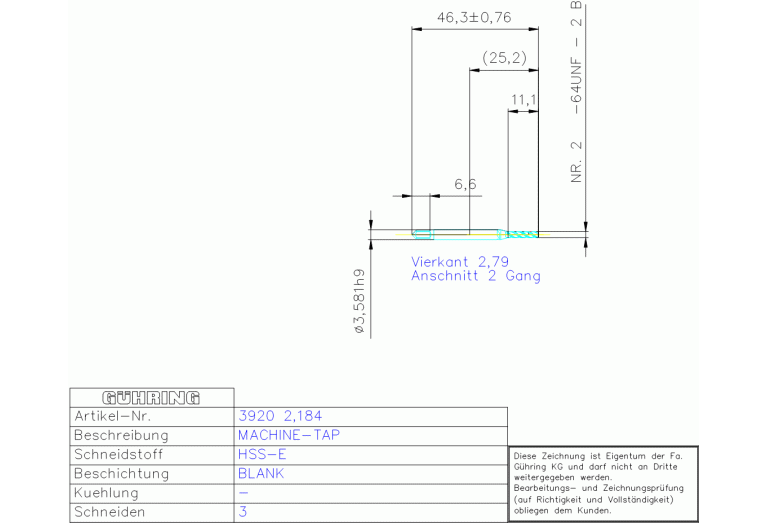

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3920 2.184

3920 2.184

3920 2.184 3920 2.184 3920 2.184 3920 2.184

3920 2.184

Gühring
Артикул: 9039200021840
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00352105
DRVS Drive size
2.79 mm
FamilyProducts
HSS-E ANSI GBO NR, 2 -64 UNF C UN-40° C
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
8.3 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9039200021840
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
11.2 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.581 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
LS Shank length
32.6 mm
Name Identifying order number
3920 2.184
NOF Flute count
3
OAL Overall length
44.5 mm
PLCD Gate diameter
1.76 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 374
TCL Tap chamfer length
0.794 mm
TCTR Thread tolerance class
2B
TDZ Thread diameter size
2
THFT Thread form type
UNF
THL Thread cutting part length
11.2 mm
THOD Thread designation
UNF2-64-2B
TP Thread pitch
0.397 mm
TPI Threads per inch
64 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.004 kg
