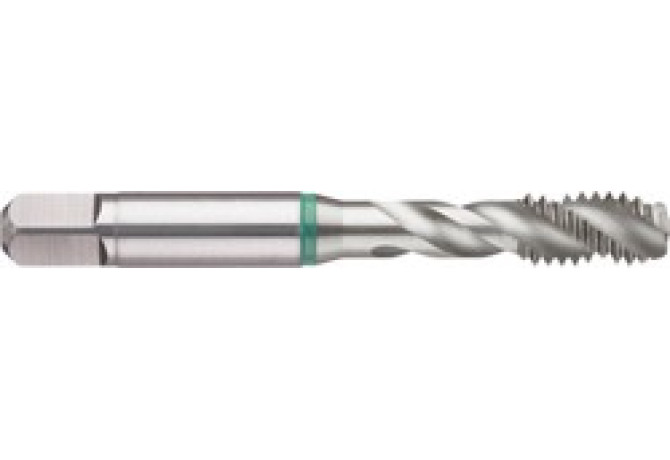

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3919 6.350

3919 6.350

3919 6.350 3919 6.350 3919 6.350 3919 6.350

3919 6.350

Gühring
Артикул: 3919 6.350
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00642105
DRVS Drive size
4.85 mm
FamilyProducts
HSS-E ANSI GBO 1/4 -20 UNC C UN-40° C
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
23.8 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0064
LOC-03 DCONMS Diameter
6.477 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00642105
LS Shank length
32.1 mm
Name Identifying order number
3919 6.350
NOF Flute count
3
OAL Overall length
63.5 mm
PLCD Gate diameter
4.98 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
WN 376
TCL Tap chamfer length
2.54 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1/4 in
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
UNC
THL Thread cutting part length
13 mm
THOD Thread designation
UNC1/4-20-2B
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.015 kg
