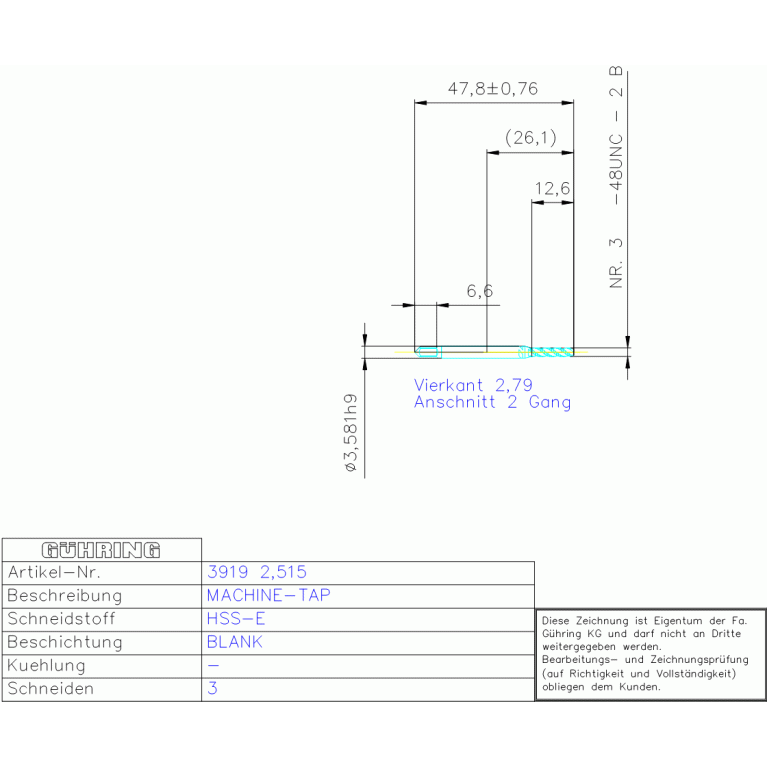

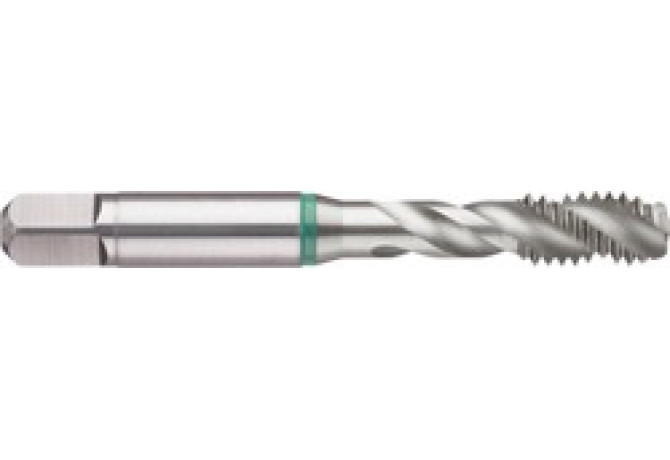

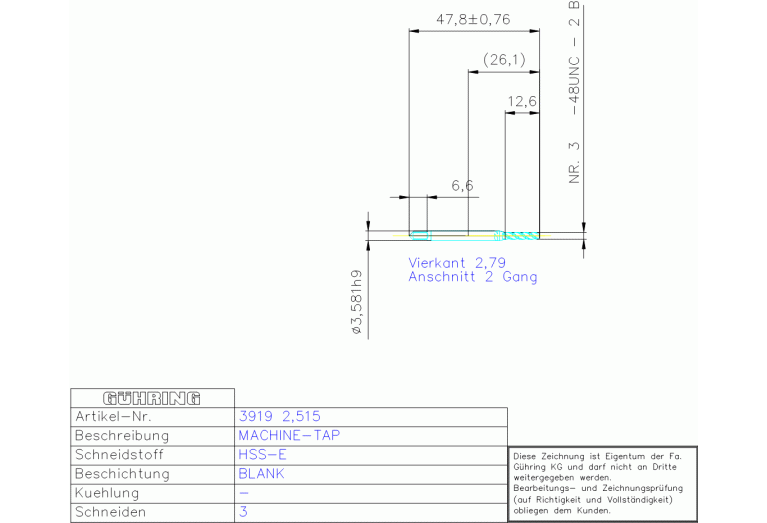

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3919 2.515

3919 2.515

3919 2.515

Gühring

Артикул: 3919 2.515

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

UN

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00352105

DRVS Drive size

2.79 mm

FamilyProducts

HSS-E ANSI GBO NR, 3 -48 UNC C UN-40° C

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

9.4 mm

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

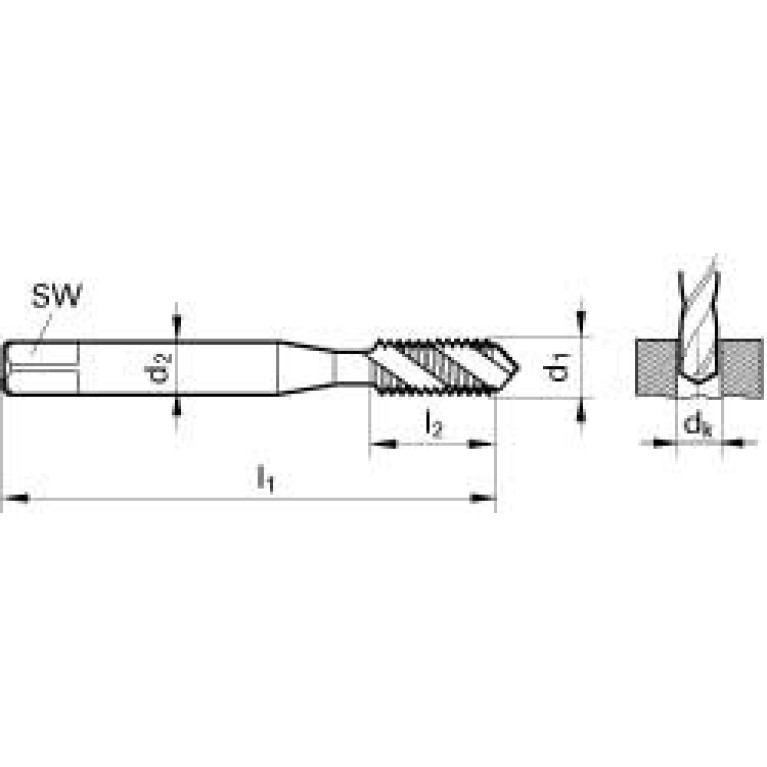

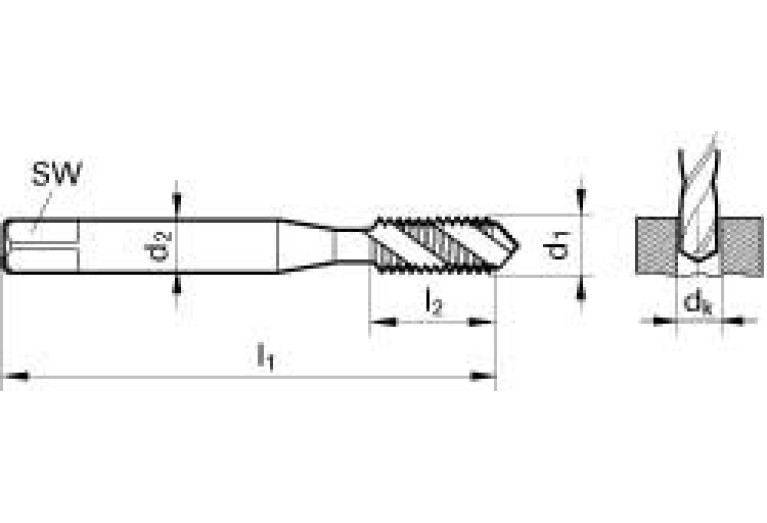

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

12.7 mm

LOC-03 CCFMS Connection code form

21

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0035

LOC-03 DCONMS Diameter

3.581 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00352105

LS Shank length

32.7 mm

Name Identifying order number

3919 2.515

NOF Flute count

3

OAL Overall length

46 mm

PLCD Gate diameter

1.94 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

WN 376

TCL Tap chamfer length

1.058 mm

TCTR Thread tolerance class

2B

TDZ Thread diameter size

3

THFT Thread form type

UNC

THL Thread cutting part length

12.7 mm

THOD Thread designation

UNC3-48-2B

TP Thread pitch

0.529 mm

TPI Threads per inch

48 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.005 kg
