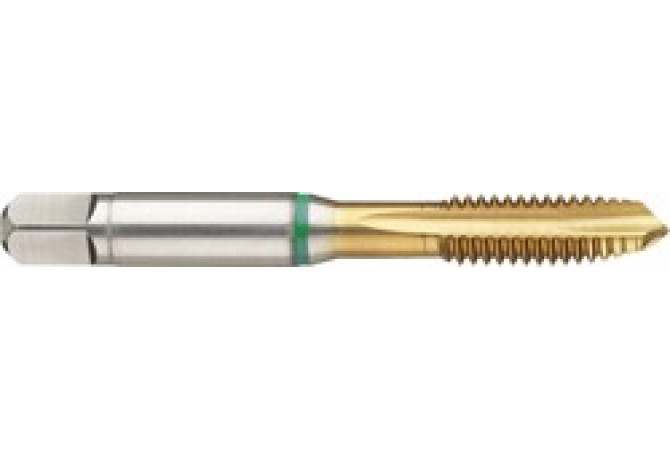

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 3916 4.826

3916 4.826

3916 4.826 3916 4.826 3916 4.826 3916 4.826

3916 4.826

Gühring
Артикул: 3916 4.826
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TIN
COMPC Company code
GG - Gühring
CRCLDIN Chip removal class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00492105
DRVS Drive size
3.86 mm
FamilyProducts
HSS-E TIN ANSI MA-GBO UN-B NR,10 -24 UNC
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass

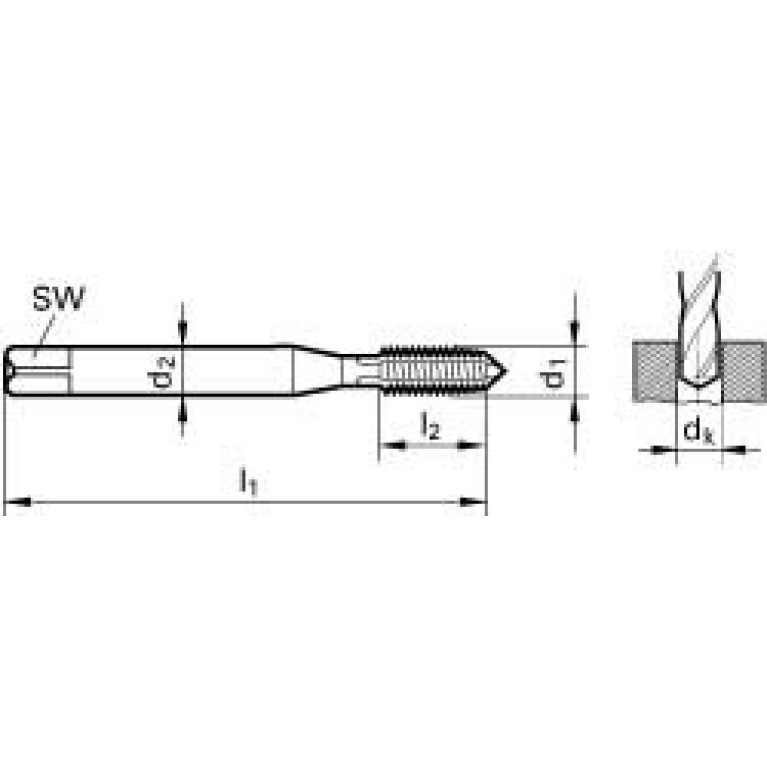

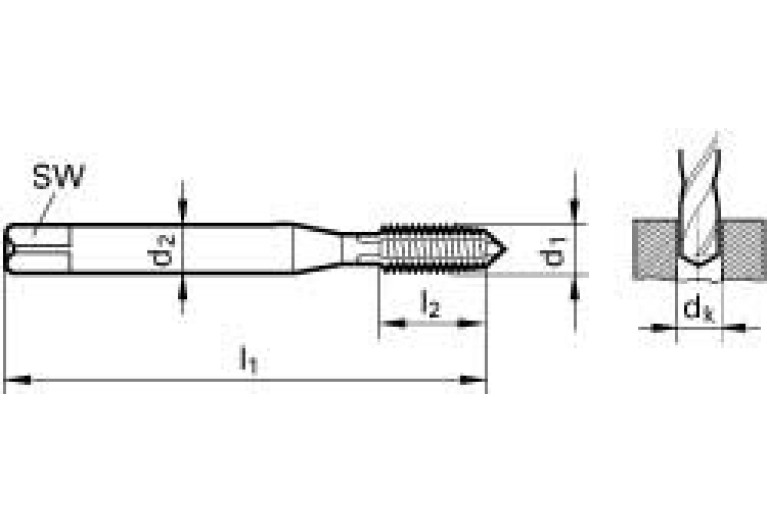

301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
24 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0049
LOC-03 DCONMS Diameter
4.928 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00492105
LS Shank length
33.9 mm
Name Identifying order number
3916 4.826
NOF Flute count
3
OAL Overall length
60.5 mm
PLCD Gate diameter
3.68 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
WN 376
TCL Tap chamfer length
4.232 mm
TCTR Thread tolerance class
2B
TDZ Thread diameter size
10
THFT Thread form type
UNC
THL Thread cutting part length
14 mm

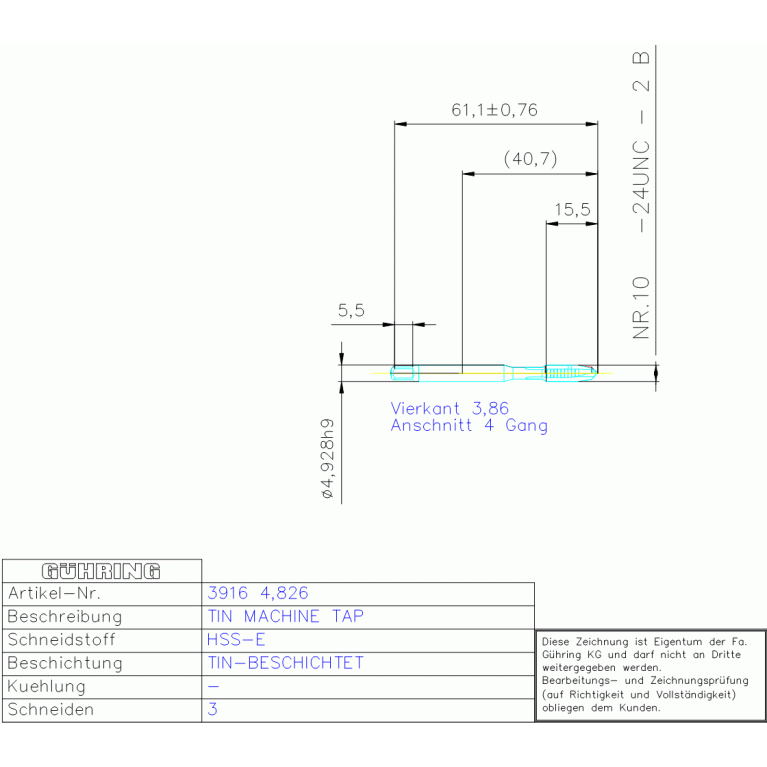

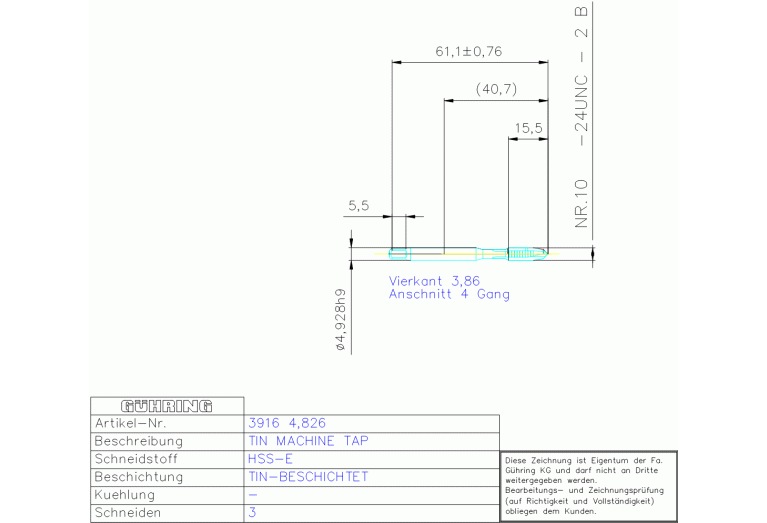

THOD Thread designation
UNC10-24-2B
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.009 kg
