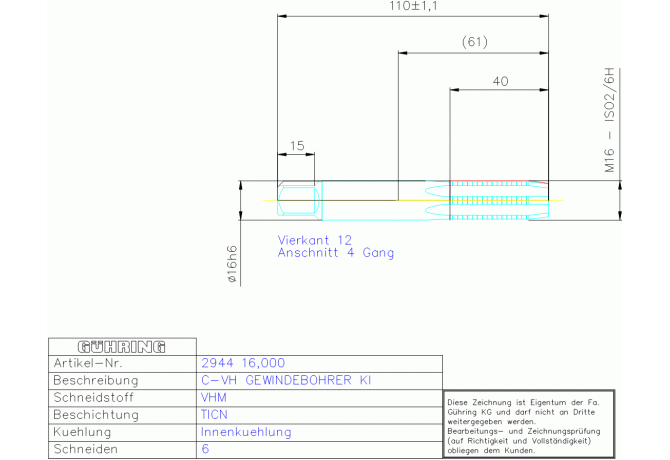

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 2944 16.000

2944 16.000

Артикул: 9029440160000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01602115

DRVS Drive size

12 mm

FamilyProducts

VHM TICN MASCH,GBO M 16 WN TYP H D

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9029440160000

Interface codes

J6 / J61

ISO

ZYL21G1600h$06

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL21G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602115

LS Shank length

53 mm

Name Identifying order number

2944 16.000

NOF Flute count

OAL Overall length

110 mm

PLCD Gate diameter

13.95 mm

PLG Plug style

D - Kappa r 8°

STDNO Standard

DIN 371~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

8 mm

TCTR Thread tolerance class

ISO2/6H

TD Thread diameter

16 mm

THFT Thread form type

THL Thread cutting part length

40 mm

THOD Thread designation

M16x2-ISO2/6H

TP Thread pitch

2 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.241 kg
