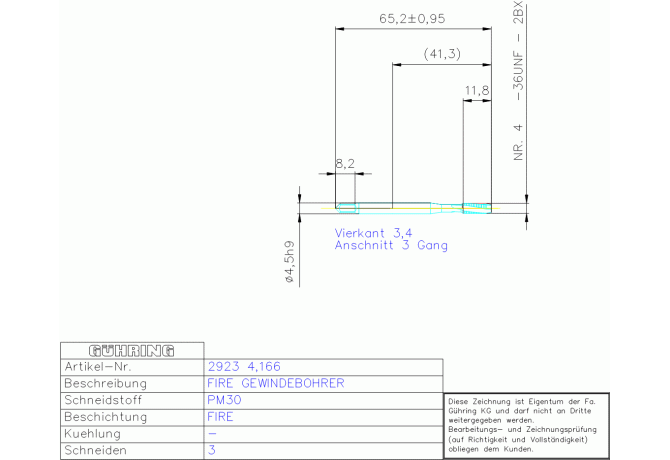

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 2923 4.166

2923 4.166

Артикул: 9029230041660

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

FIRE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00452105

DRVS Drive size

3.4 mm

FamilyProducts

PM HSSE FIRE GBO NR, 8 -36 UNF DIN371 NI

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

75 mm

GRD2ND Standard designation of the grade 2nd application

PM30

GRDMFG Grade manufacturers designation

PM30

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9029230041660

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

21 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0045

LOC-03 DCONMS Diameter

4.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00452105

LS Shank length

37.4 mm

Name Identifying order number

2923 4.166

NOF Flute count

OAL Overall length

63 mm

PLCD Gate diameter

3.4 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN371~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.118 mm

TCTR Thread tolerance class

2BX

TDZ Thread diameter size

THFT Thread form type

UNF

THL Thread cutting part length

12 mm

THOD Thread designation

UNF8-36-2BX

TP Thread pitch

0.706 mm

TPI Threads per inch

36 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.006 kg
