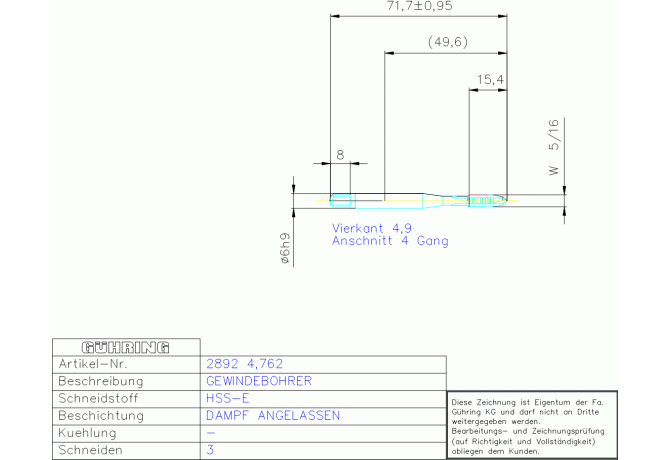

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 2892 4.762

2892 4.762

2892 4.762 2892 4.762

2892 4.762

Gühring
Артикул: 9028920047620
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
DAMPF ANGELASSEN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
ST
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00602105
DRVS Drive size
4.9 mm
FamilyProducts
HSS-E MA,-GBO BSW W 3/16-24 DIN 371RN
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9028920047620
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
25 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
LS Shank length
37.2 mm
Name Identifying order number
2892 4.762
NOF Flute count
3
OAL Overall length
70 mm
PLCD Gate diameter
3.41 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN371~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.232 mm
TDFR Thread diameter nominal fraction
3/16 in
TDIN Thread diameter nominal inch
0.188 in
THFT Thread form type
W
THL Thread cutting part length
14 mm
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.011 kg
