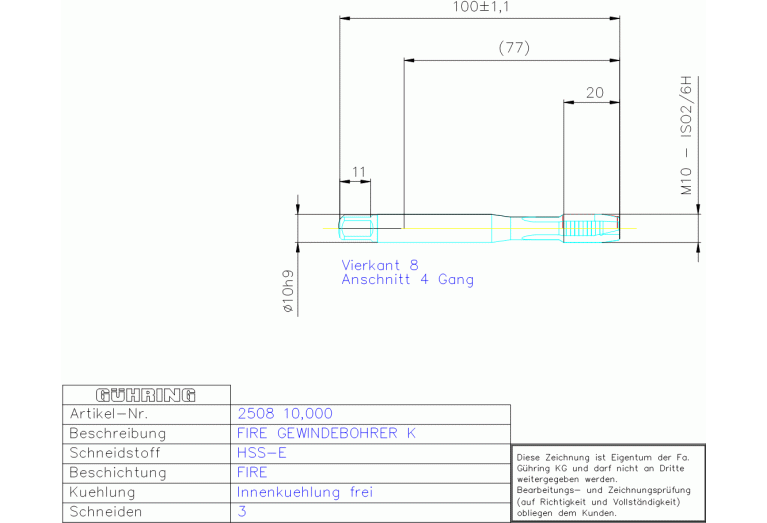

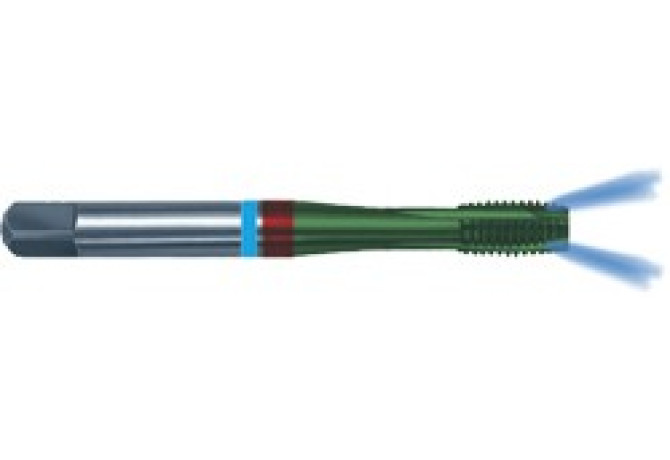

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 2508 10.000

2508 10.000

2508 10.000 2508 10.000 2508 10.000 2508 10.000

2508 10.000

Gühring
Артикул: 2508 10.000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
FIRE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL01002115
DRVS Drive size
8 mm
FamilyProducts
HSS-E FIRE MA,-GBO KI M10 DIN 371VA B
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
39 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002115
LS Shank length
54.3 mm
Name Identifying order number
2508 10.000
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
8.38 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 371
TCL Tap chamfer length
6 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
10 mm
THFT Thread form type
M
THL Thread cutting part length
20 mm
THOD Thread designation
M10x1.5-ISO2/6H
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.046 kg
