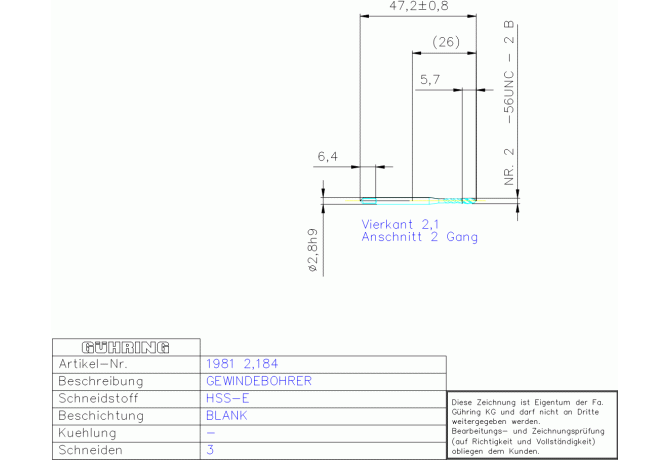

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1981 2.184

1981 2.184

1981 2.184 1981 2.184

1981 2.184

Gühring
Артикул: 9019810021840
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.025 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00282105
DRVS Drive size
2.1 mm
FamilyProducts
HSS-E MA-GBO NR,2 -56UNC DIN371RN FORM C
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
8.3 mm
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9019810021840
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
14.5 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0028
LOC-03 DCONMS Diameter
2.8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00282105
LS Shank length
26.6 mm
Name Identifying order number
1981 2.184
NOF Flute count
3
OAL Overall length
45 mm
PLCD Gate diameter
1.69 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN371~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
0.908 mm
TCTR Thread tolerance class
2 B
TDZ Thread diameter size
2
THFT Thread form type
UNC
THL Thread cutting part length
5 mm
THOD Thread designation
UNC2-56-2 B
TP Thread pitch
0.454 mm
TPI Threads per inch
56 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.001 kg
