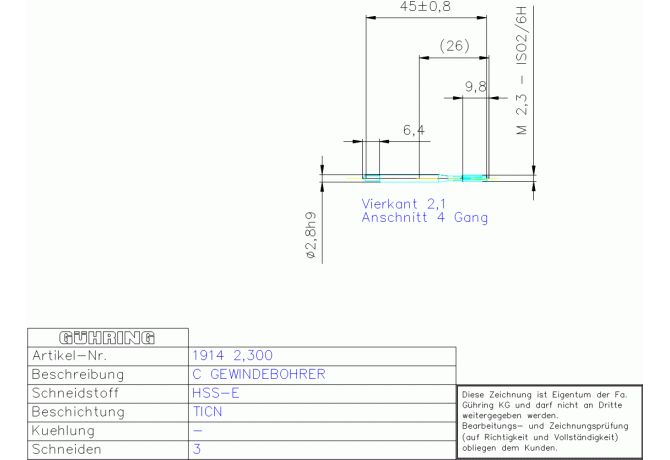

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1914 2.300

1914 2.300

1914 2.300 1914 2.300

1914 2.300

Gühring
Артикул: 9019140023000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
HS
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.025 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00282105
DRVS Drive size
2.1 mm
FamilyProducts
HSS-E C-MASCH,-GBO 2,300 DIN 371RH B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9019140023000
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
14.5 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0028
LOC-03 DCONMS Diameter
2.8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00282105
LS Shank length
27 mm
Name Identifying order number
1914 2.300
NOF Flute count
3
OAL Overall length
45 mm
PLCD Gate diameter
1.8 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1.6 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
2.3 mm
THFT Thread form type
M
THL Thread cutting part length
9 mm
THOD Thread designation
M2.3x0.4-ISO2/6H
TP Thread pitch
0.4 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.001 kg
