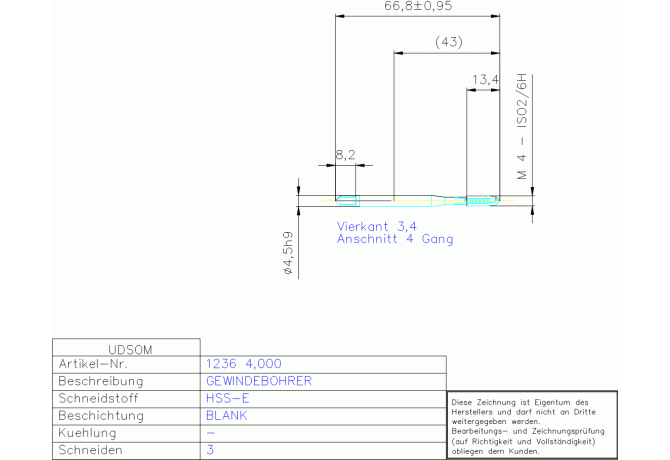

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1236 4.000

1236 4.000

1236 4.000 1236 4.000

1236 4.000

Gühring
Артикул: 1236 4.000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00452105
DRVS Drive size
3.4 mm
FamilyProducts
UDSOM HSS-E MASCH,-GBO M 4 DIN371R VA
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452105
LS Shank length
36.7 mm
Name Identifying order number
1236 4.000
NOF Flute count
3
OAL Overall length
63 mm
PLCD Gate diameter
3.2 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN 371
TCL Tap chamfer length
2.8 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
4 mm
THFT Thread form type
M
THL Thread cutting part length
12 mm
THOD Thread designation
M4x0.7-ISO2/6H
TP Thread pitch
0.7 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.081 kg
