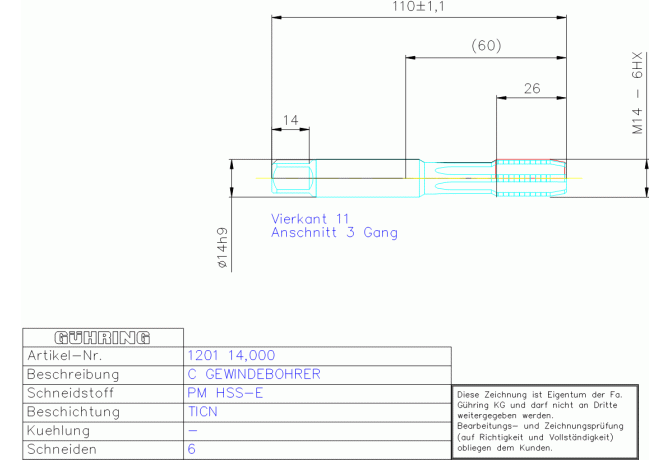

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1201 14.000

1201 14.000

Артикул: 9012010140000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01402105

DRVS Drive size

11 mm

FamilyProducts

PM HSS-E TICN-GBO GG DIN371 HD M14

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9012010140000

Interface codes

J6 / J61

ISO

ZYL21G1400h$09

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

53 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21G1400h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01402105

LS Shank length

55.1 mm

Name Identifying order number

1201 14.000

NOF Flute count

OAL Overall length

110 mm

PLCD Gate diameter

11.95 mm

PLG Plug style

D - Kappa r 8°

STDNO Standard

DIN 371

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

6 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

14 mm

THFT Thread form type

THL Thread cutting part length

26 mm

THOD Thread designation

M14x2-6HX

TP Thread pitch

2 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.109 kg
