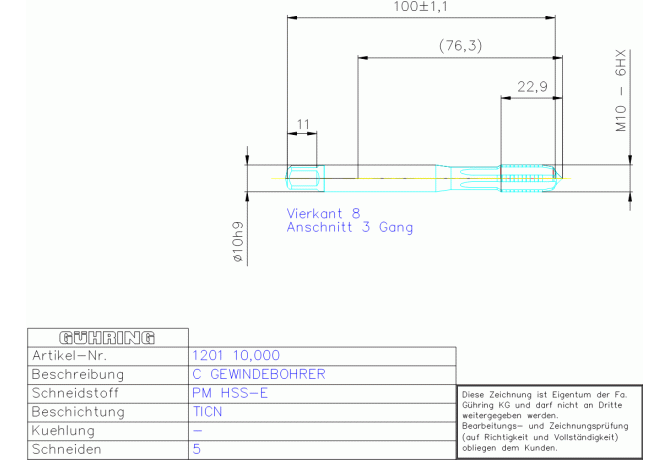

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1201 10.000

1201 10.000

Артикул: 9012010100000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TICN

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.036 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01002105

DRVS Drive size

8 mm

FamilyProducts

PM HSS-E TICN-GBO GG DIN 371 HD M10

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9012010100000

Interface codes

J6 / J61

ISO

ZYL21G1000h$09

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

39 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21G1000h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002105

LS Shank length

55.4 mm

Name Identifying order number

1201 10.000

NOF Flute count

OAL Overall length

100 mm

PLCD Gate diameter

8.45 mm

PLG Plug style

D - Kappa r 8°

STDNO Standard

DIN 371

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

4.5 mm

TCTR Thread tolerance class

6HX

TD Thread diameter

10 mm

THFT Thread form type

THL Thread cutting part length

20 mm

THOD Thread designation

M10x1.5-6HX

TP Thread pitch

1.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.01 kg
