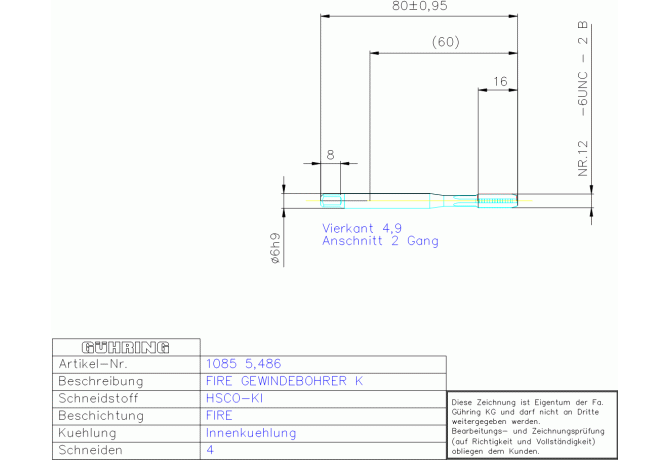

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1085 5.486

1085 5.486

1085 5.486 1085 5.486

1085 5.486

Gühring
Артикул: 9010850054860
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
FIRE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
GG
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00602115
DRVS Drive size
4.9 mm
FamilyProducts
HSS-E FIRE GBO M,IK DIN371 NR.12 -24 UNC
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9010850054860
Interface codes
J6 / J61
ISO
ZYL21F6000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21F6000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602115
LS Shank length
44.4 mm
Name Identifying order number
1085 5.486
NOF Flute count
4
OAL Overall length
80 mm
PLCD Gate diameter
4.34 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.116 mm
TCTR Thread tolerance class
2 B
TDZ Thread diameter size
12
THFT Thread form type
UNC
THL Thread cutting part length
16 mm
THOD Thread designation
UNC12-24-2 B
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.015 kg
