1068 9.525
1068 9.525
Артикул:
9010680095250
В наличии

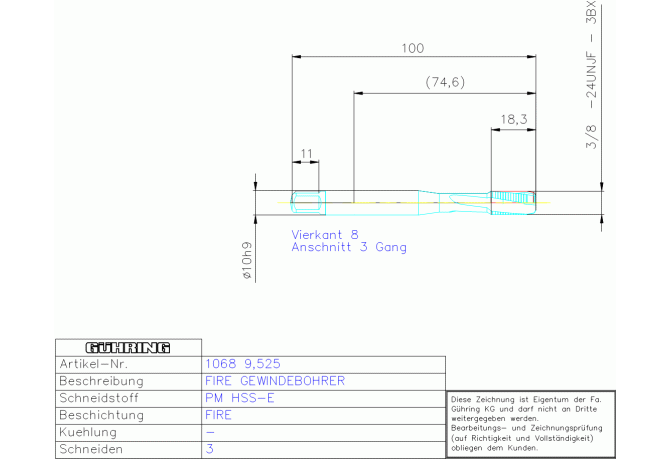

Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
FIRE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
H
CRCLMFG Chip removal class mfg
NI
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01002105
DRVS Drive size
8 mm
FamilyProducts
PM HSSE FIRE GBO 3/8 -24 UNJF DIN 371
FHA Flute helix angle
10 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
169.7 mm
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9010680095250
Interface codes
J6 / J61
ISO
ZYL21G1000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
39 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03 ISO
ZYL21G1000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
LS Shank length
52.5 mm
Name Identifying order number
1068 9.525
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
8.4 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371~
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.174 mm
TCTR Thread tolerance class
3BX
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
UNJF
THL Thread cutting part length
20 mm
THOD Thread designation
UNJF3/8-24-3BX
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.054 kg
