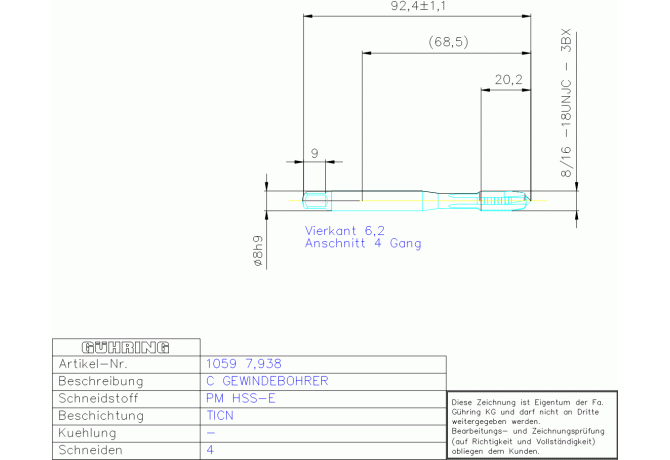

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1059 7.938

1059 7.938

Артикул: 9010590079380

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TICN

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.036 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00802105

DRVS Drive size

6.2 mm

FamilyProducts

PM HSSE C GBO 5/16-18 UNJC DIN371 TN-B

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

PM HSS-E

GRDMFG Grade manufacturers designation

PM HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

ID Technical product number

9010590079380

Interface codes

J6 / J61

ISO

ZYL21F8000h$09

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

35 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21F8000h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802105

LS Shank length

48.6 mm

Name Identifying order number

1059 7.938

NOF Flute count

OAL Overall length

90 mm

PLCD Gate diameter

6.5 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

DIN371~

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

5.644 mm

TCTR Thread tolerance class

3BX

TDFR Thread diameter nominal fraction

5/16 in

TDIN Thread diameter nominal inch

0.3125 in

THFT Thread form type

UNJC

THL Thread cutting part length

18 mm

THOD Thread designation

UNJC5/16-18-3BX

TP Thread pitch

1.411 mm

TPI Threads per inch

18 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.034 kg
